Bunchy Pigail

Product Name : Bunchy Pigtail

Product Code :  SNT-FOPT-BY

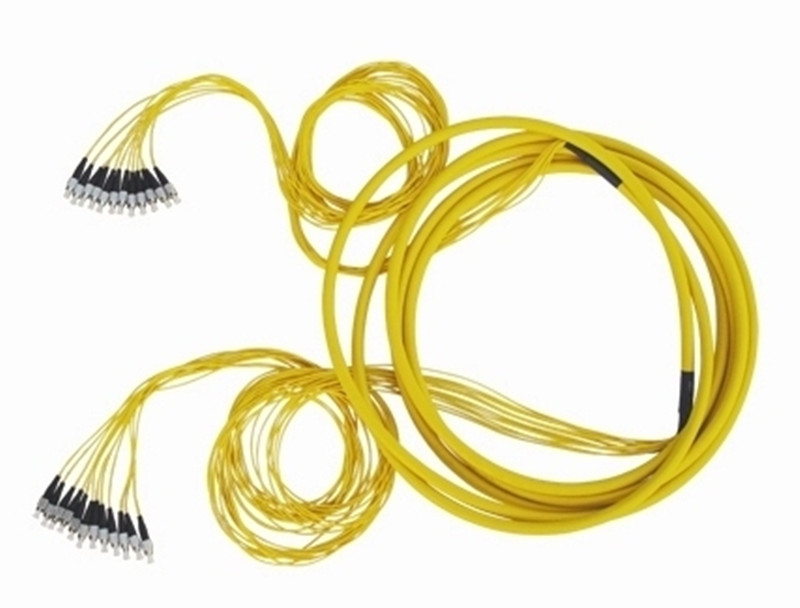

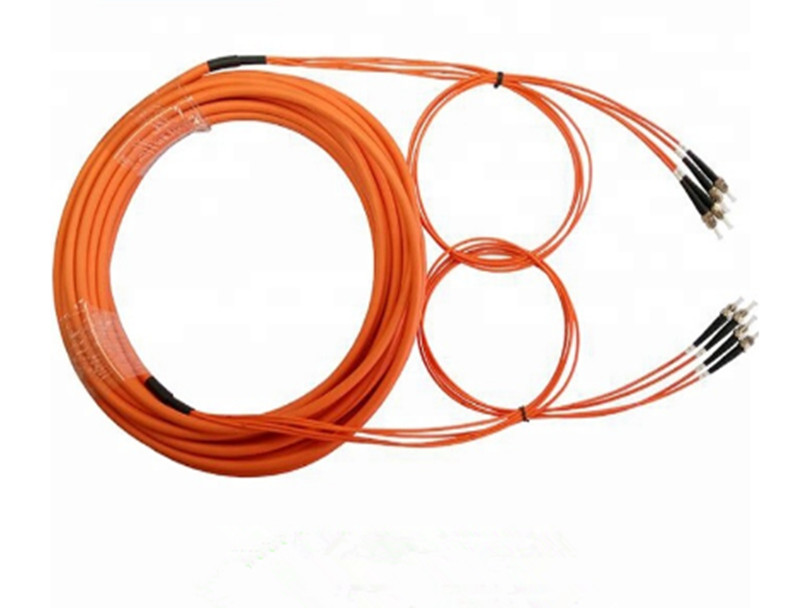

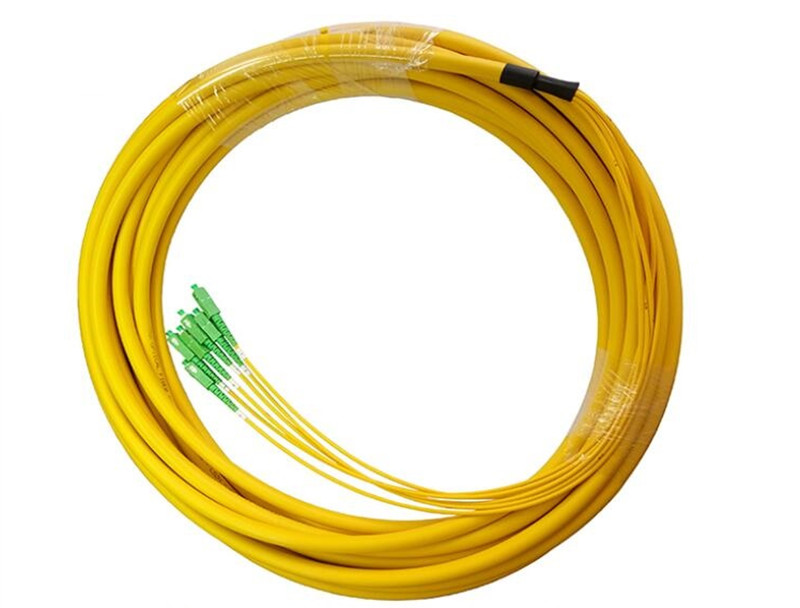

Bundle fan-out pigtails are made of multi core round bundle fiber optic cable, which is also called distribution
fiber optic cable. It is generally installed in closet area like rack mount or wall mount splice boxes or patch

Bundle fan-out pigtail is an amount (2 -12 fibers) of 900 μm pigtails bundled in an outer jacket with kevlar and
can be pre-connectorized or non pre-connectorized. Bundle fan-out Pigtail has the great advantage of giving
less congestion than 12 individual pigtails with outer jacket and kevlar. Interfacility cable is routed on the
splice unit, whether it is pre-connectorized or not. In case one connector fails or a fiber breaks, the complete
Bundle Pigtail should not be replaced since the splice holder can be used to splice a new pigtail to the broken
fiber. Fiber optic distribution patch cord contains individual 900 μm fibers with kevlar and outer jacket (up to
2.0 mm) and a strength member which are bundled in an outer jacket. These cables are constructed very
high fiber count up to 144 fibers.


Bundle fan out pigtails are a custom design product; cable length, jacket types and connectors are with many
options. To easily identify the multiple fiber cables, 0.9mm cable itself are made with different colors, if 2mm
cable it will be put number label to identify. HNK provides a wide range of high quality high fiber count Bundle
fan out patch cord assemblies with various types of Fiber Connectors including ST, FC, SC, LC, MU, E2000
...etc.,. , and are available in multimode and single-mode fibers with a variety of Fiber Patch cords. All of the
Bundle fan out patch cord assemblies are composed of our top quality Ceramic Ferrules and Fiber Connector
Housings ensuring a stable performance at a high quality level.

Complied with or exceeds Standard
.  ITU-T G652.D                                      .  ITU-T G657.A
.  ITU-T G651.1 OM1 OM2 OM3 OM4       .  IEC60793-2-10  type A1a.1/A1b OM1/OM2
.  IEC60793-2-10  type A1a.2 OM3    .  IEC60793-2-10  type A1a.3 OM4
.  ISO/IEC 11801 , ISO/IEC 24702     .  IEEE 802.3z Gigabit Ethernet
.  ANSI/TIA/EIA 568C.3                    .  ROHS Compliant Directive 2011/65/EU(ROHS2.0)

.  Top quality ceramic ferrule                              .  Top quality fiber cable
.  Low insertion loss and high return loss            .  UPC, APC or PC polish
.  Good exchangeability                                    .  Good durability
.  GR-326-Core, UL94V-O, TIA/EIA-568-B.3, RoHS


Fiber TypeOS2, OS1, OM1, OM2, OM3, OM4
Fiber Count 2,4,6,8,12,24,48,72,144
Cable TypeBundle cable, Ruggedzied Cable
Fan-out tubing diameter0.9mm,2.0mm
ConnectorSC, LC, ST, FC, MU, MTRJ,
E2000, DIN, D4, SMA905
Jacket TypeOFNR (Normal), OFNP, LSZH
Insertion Loss<=0.2dB
Return Loss*UPC>=50dB, APC>=60dB, PC>=35dB
Repeatability (dB)<=0.2 (1000 times)
Exchangeability (dB) <=0.2
Operating temperature-40 ° C ~ 85 ° C
Storage temperature-40 ° C ~ 85 ° C

*UPC≥55dB, APC≥65dB on request.
All connectors are inspected visually at 400X
