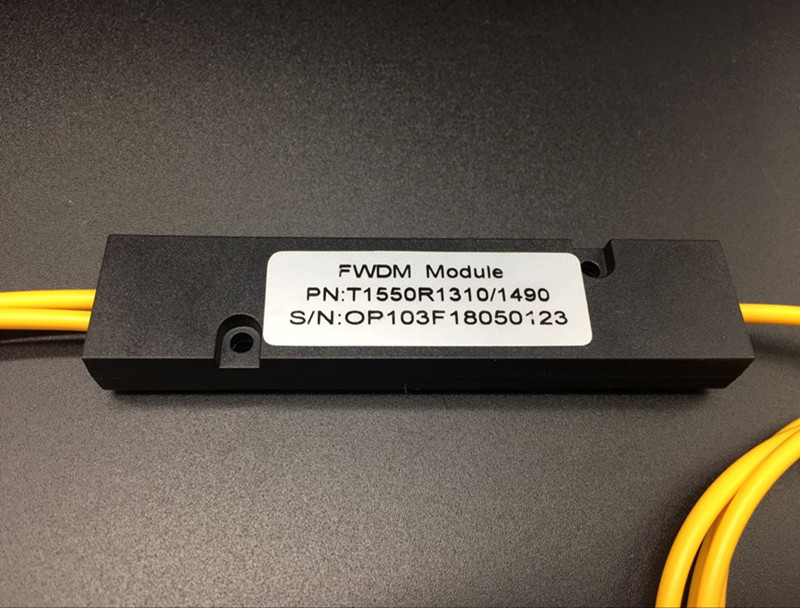

Product Code : SNT-FWDM-1*2-0.9MM-SCA

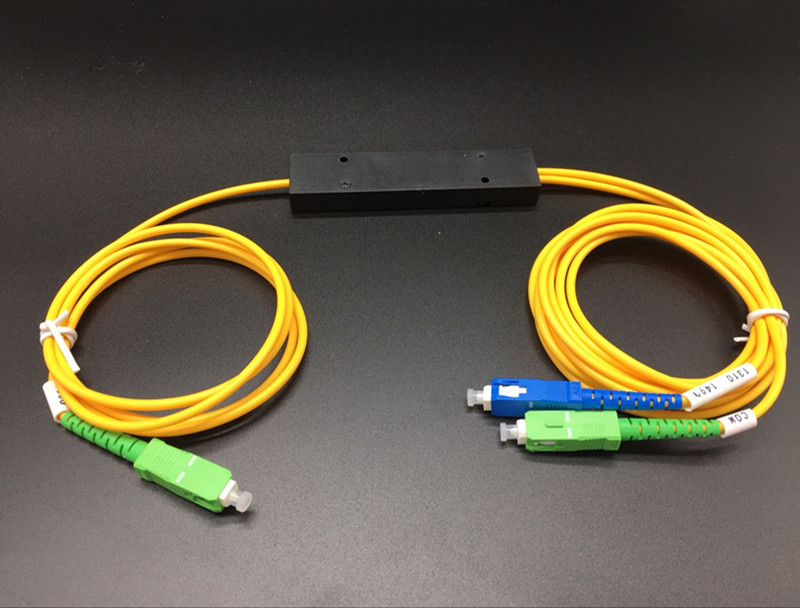

Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

  It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.


Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability


System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

Normal isolationHigh isolation
Working WavelengthPass bandnm1550±10 or (1310±50, 1490±10)
Reflect bandnm(1310±50, 1490±10) or 1550±10
Max. Insertion LossCom«Pass portdB0.71.0
Com«Reflect portdB0.50.8
Min. IsolationCom«Pass portdB3535
Com«Reflect portdB1835
Max. Polarization Dependent LossdB0.10.2
Min. DirectivitydB50
Min. Return LossdB50
Max. Power Handlingmw300
Operating Temperature°C-20 ~ +75
Storage Temperature°C-40 ~ +85
Fiber Type
Corning SMF-28
Pigtail Lengthm1.0±0.1 (standard)

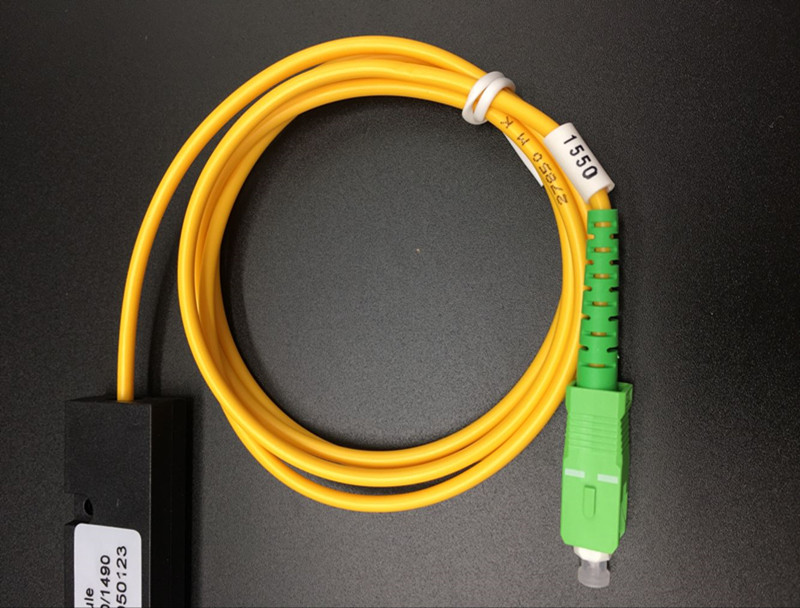

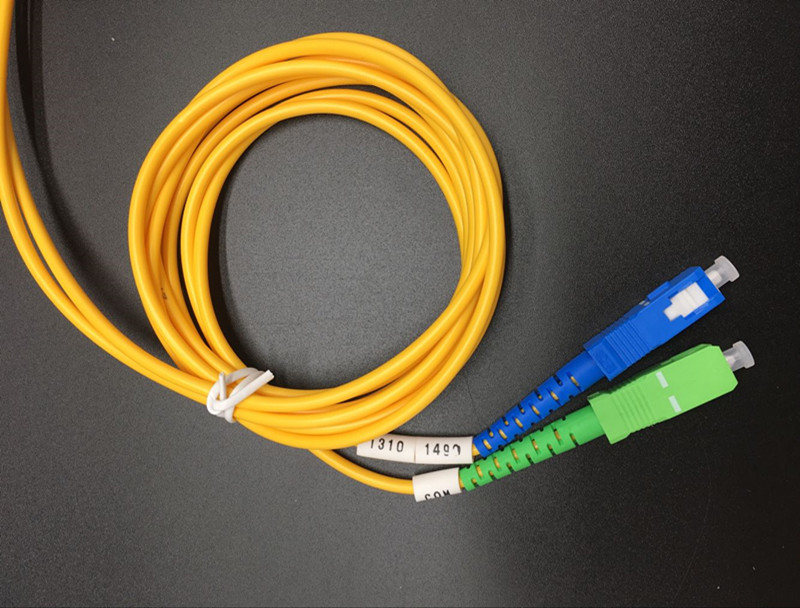

Connector Type
Please specify

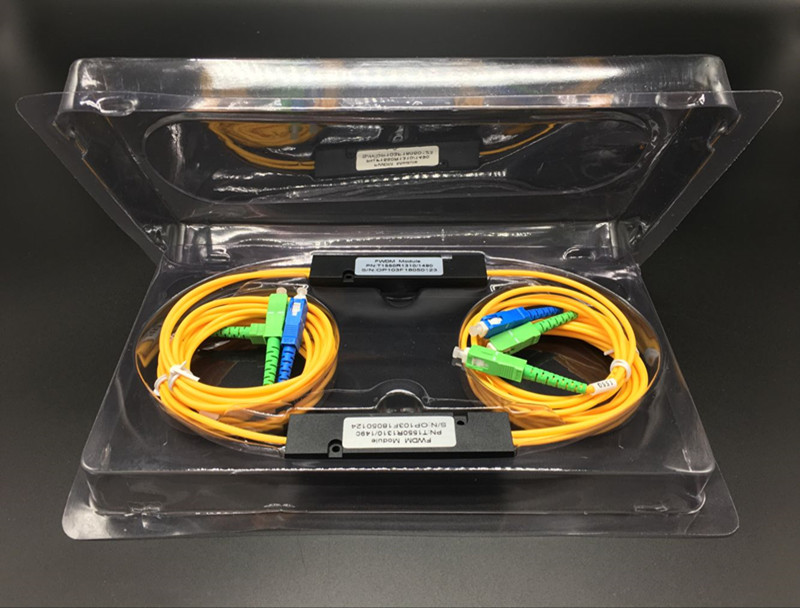

Package DimensionmmC: f5.5´33F: f5.5´36L: 120´80´18
