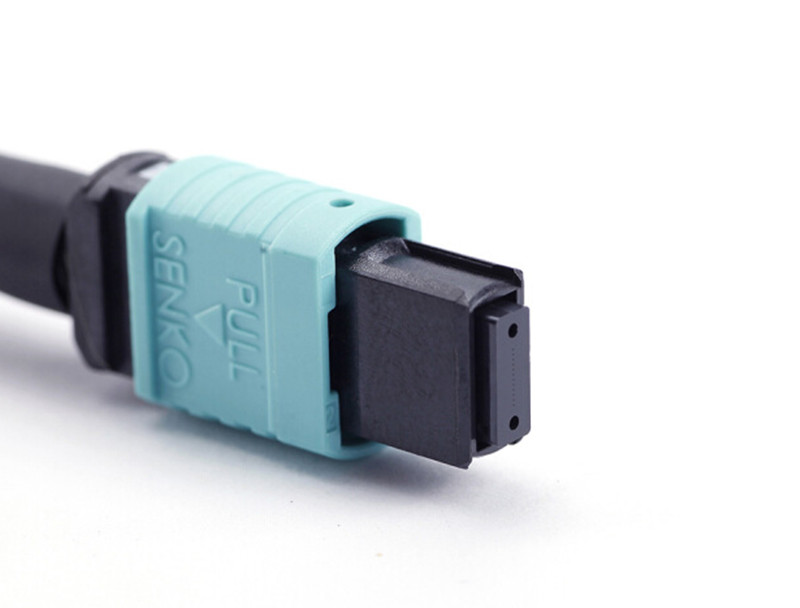

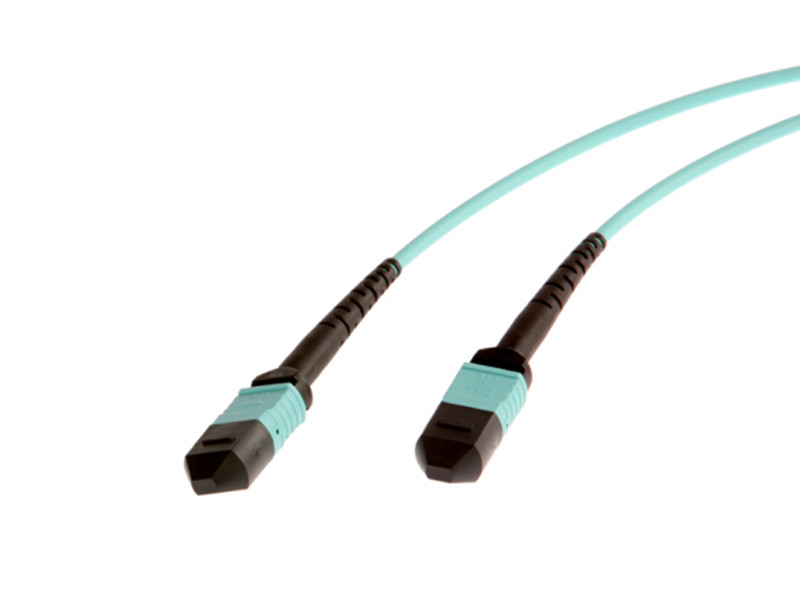

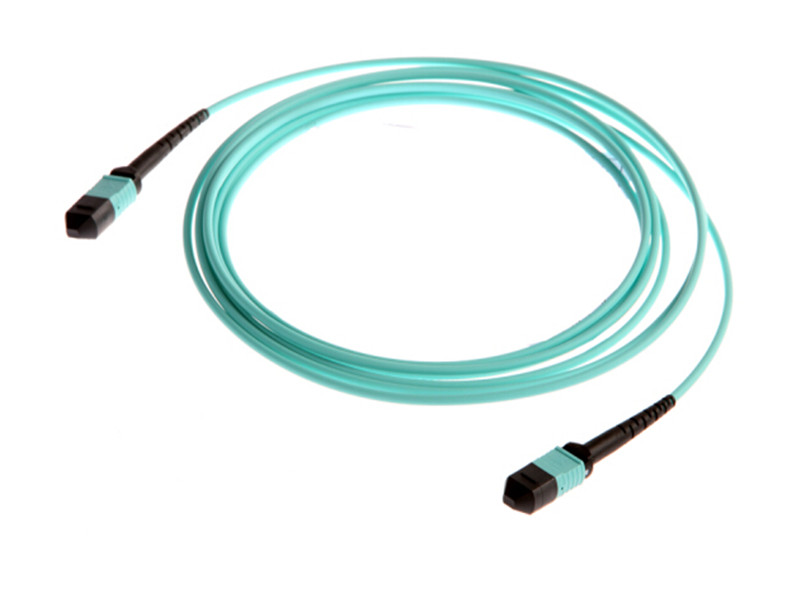

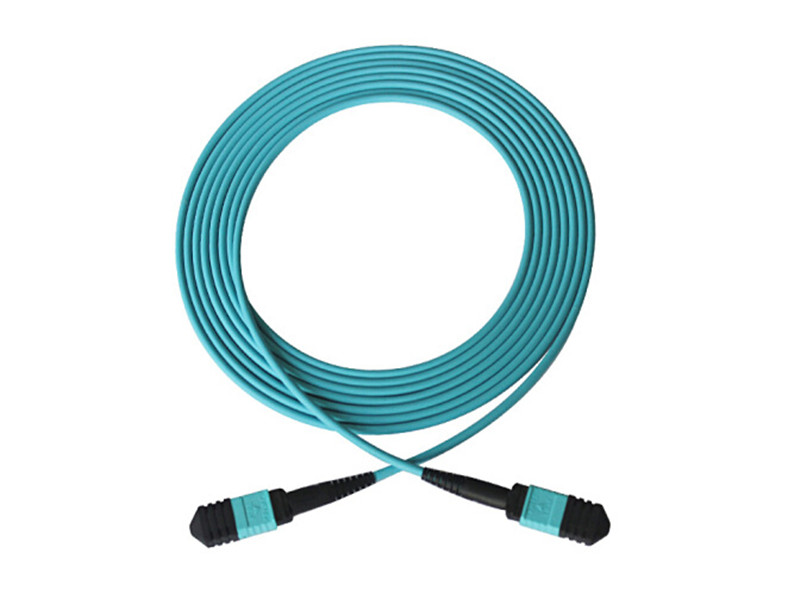

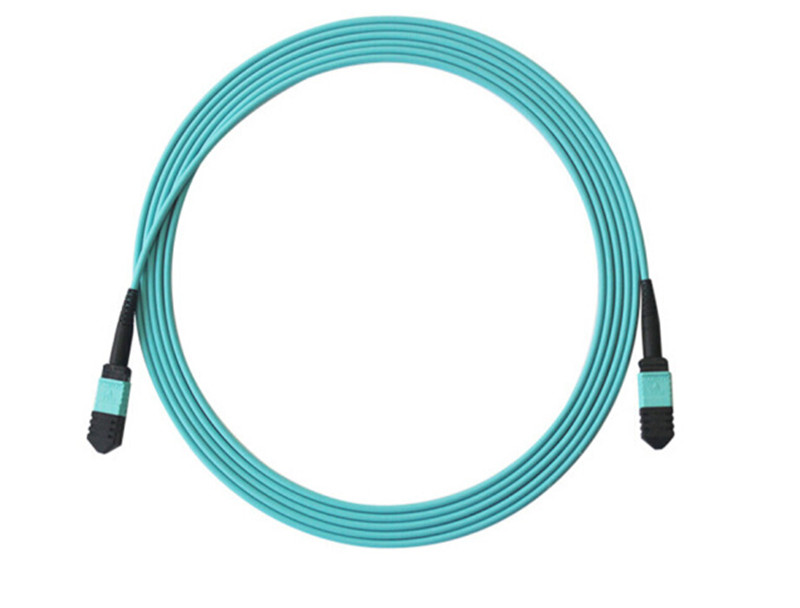

MPO Patchcord

Product Name : MPO Patchcord

Product Code :  SNTPC-MPO

Product Description

 The MPO patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.


MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



Different fiber sequences and different key configurations are optional.

 Available in SM (9/125), MM (50 or 62.5/125), OM3 and OM4 fiber types.

Available in 8/12/24 fibers.

Ribbon ,Ruggedized or fan-out cord is available

 LSZH, PVC,OFNR and OFNP rated jacket are optional.

 Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements

Connector Performance Specifications
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing ColorStandard (green),Elite (Yellow)Standard(Beige)Elite(Auqa)
Insertion Loss Standard typeless than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB>30dB
Durability (500 matings)less than 0.2dB
Test Eavelength1310/1550nm850/1300nm
 Fiber Cable Perfomance Specifications
Fiber TypeOS2, OM1, OM2, OM3, OM4
Fiber Count8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter3.0mm 5.5mm or customized
Jacket ColorYeloow, Orange, Aqua, Purple
Jacket MaterialOFNR, OFNP, PVC, LSZH
Tensile Strength500N
Operating Temperature-20 to 70 ℃
Storage Temperature-40 to 75℃
