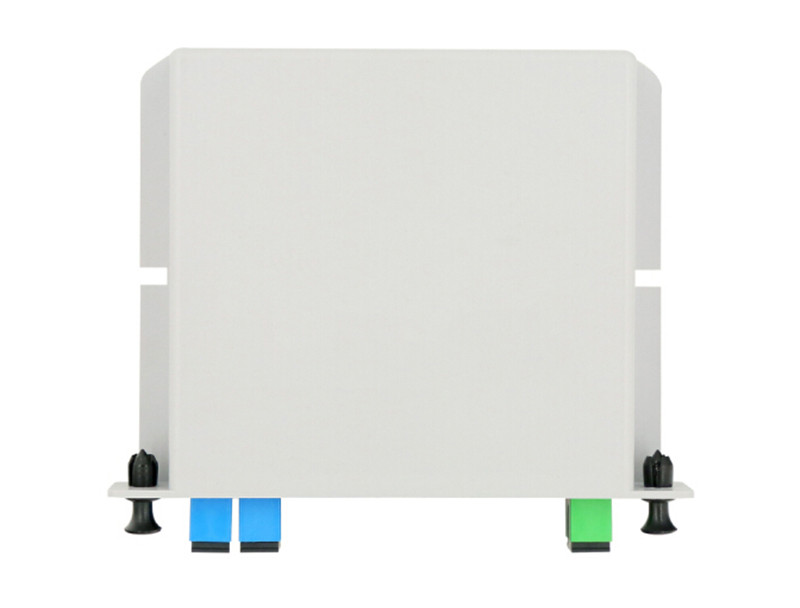

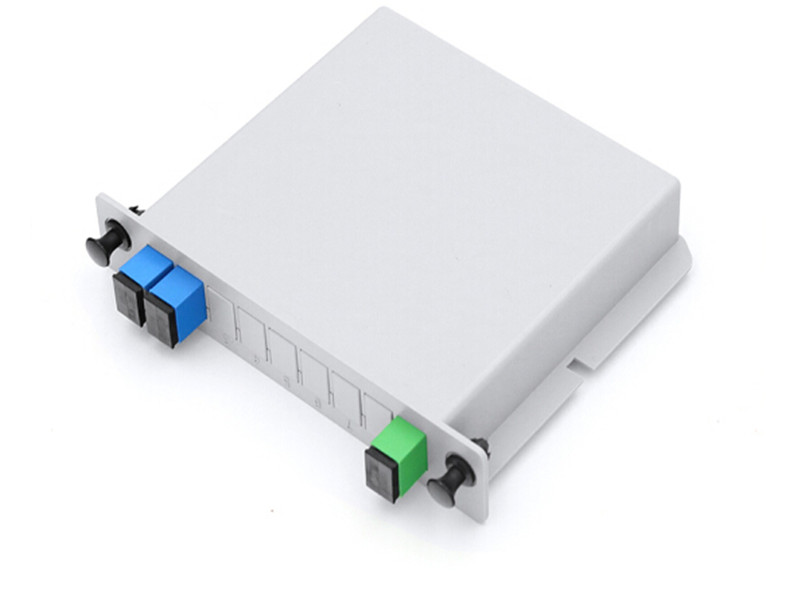

PLC Splitter


Product Code : SNTPLC-CASE-1*2-SC

PLC Splitters is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx in PON, CWDM, DWDM and optical cable TV System. It’s also responsible to distribute optical signals from Central Office (CO) to multiple premise locations. We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


Features:

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability Telcordia GR-1221 and GR-1209



Application:

Fiber to The Home (FTTH)

Passive optical networks (EPON/GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment


Specification


1xN PLC Splitter Specification
Operating Wavelength(nm)1260~1650
Fiber TypeG657A1 or as customers' order
Port Configuration1x21x41x81x161x321x641x128
Insertion Loss (dB)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformity (dB)0.40.60.81.21.52.02.5
Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
Temperature Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.50.5
Return Loss (dB)55/50
Operating Temperature-40~+85
Directivity (dB)≥ 55
Storage Temperature-40~+85
