Wall Mount Terminal Box


Product Name : Wall Mounted Type Terminal Box

Product Code :  SNT-FOTB-FX-48C-SC

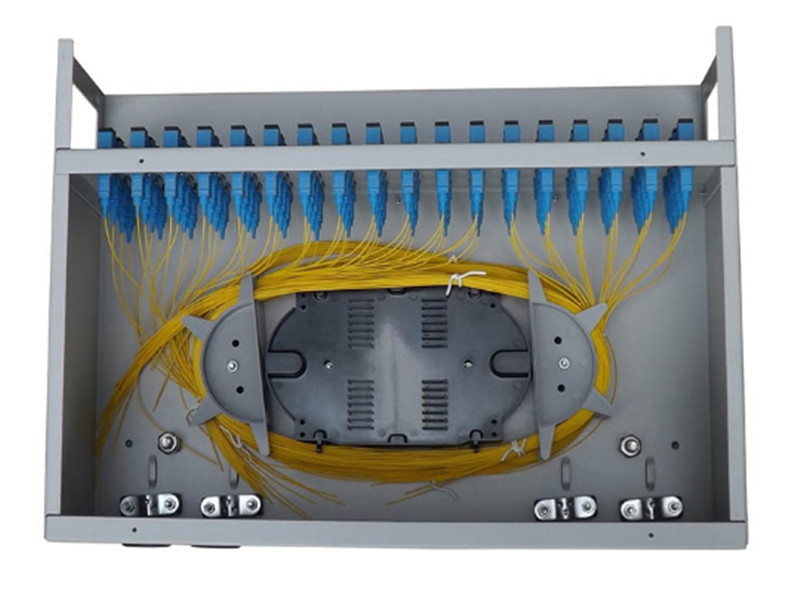

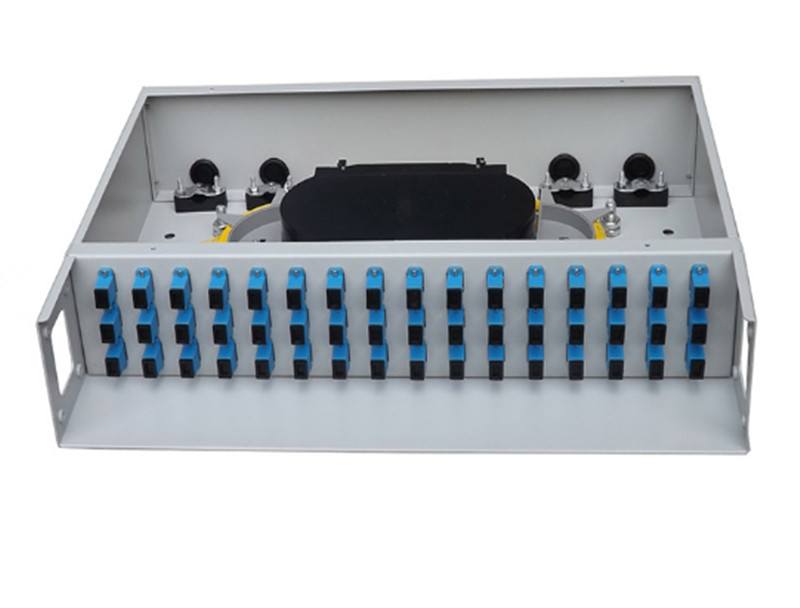

Fixed Rack-mount Fiber Optic Distribution Frame with distribution center holds fusion splice trays and provides an economical way of splicing a small number of fiber cables in communication room or existing equipment racks where space is constrained.



Features:

1. 19-inch fixed type, easy to operate

2. 4 fiber cable entry ports at rear side

3. Simplex and duplex FC,LC,SC,ST adapter optional

4. Compact design for space saving

5. Suitable for ribbon and single fiber

6. Front access panel design for easy operation

7. Standard size, light weight and reasonable structure



Application:

1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV


Specification:

ModelFiber quantityQty of splice traysHeightDimension(cm)Weight(Kg)
SNT-FOTB-FX-12C1211U42x30x4.453.2
SNT-FOTB-FX-24C2421U42x30x4.453.4
SNT-FOTB-FX-48C4842U49x30x8.94.2
SNT-FOTB-FX-96C9682.5U49x30x115.6
