FTTH Box


Product Name : FTTH BOX

Product Code  : SNT-FAT-8C

FAT-8C fiber access termination box is able to hold up

to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Features

Water-proof design with IP-66 Protection level.

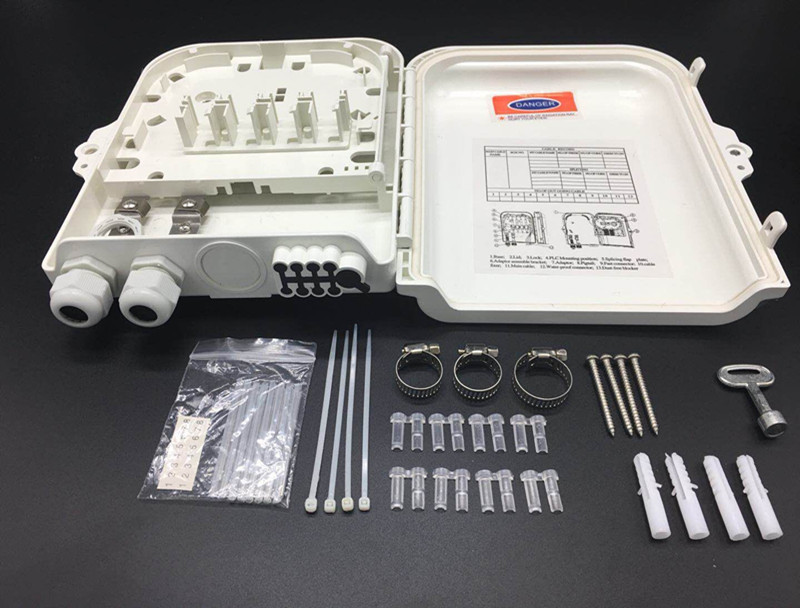

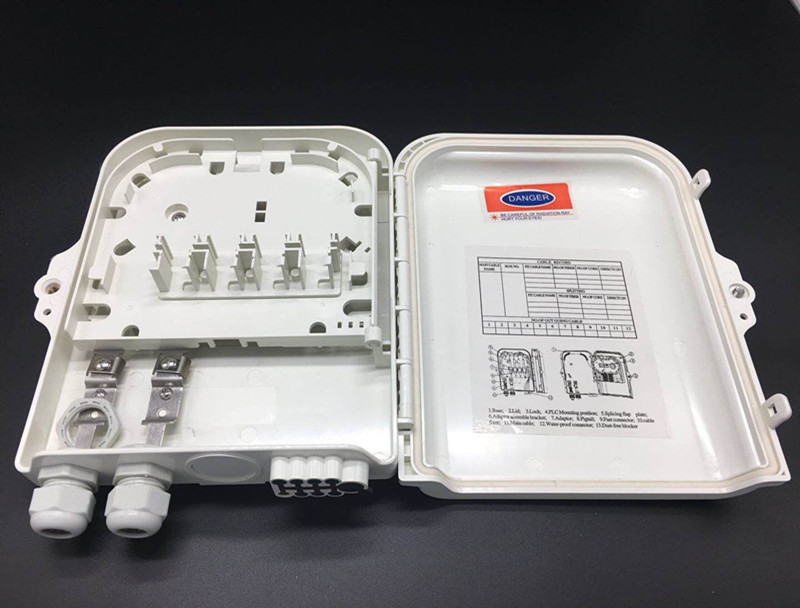

Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice. 1*8 Splitter can be installed as an option.

Efficient cable management.

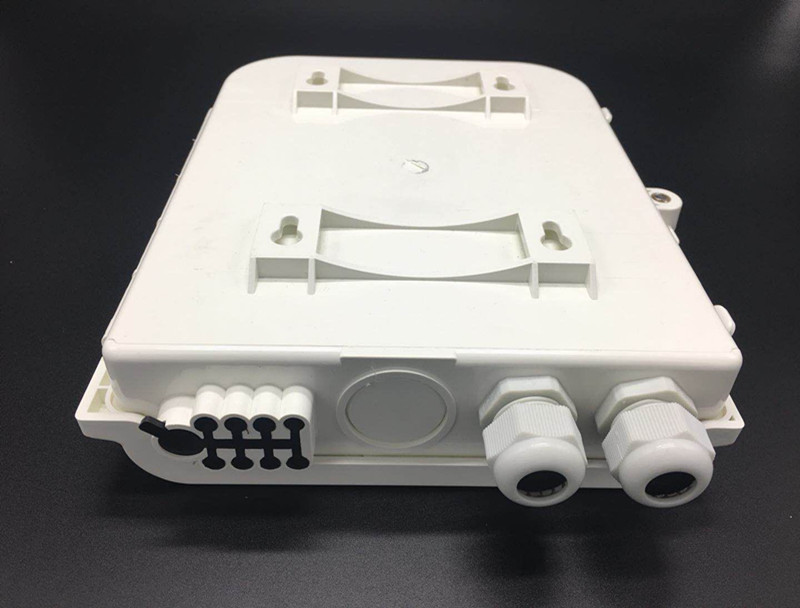

8 ports cable entrance for drop cable.


Configuration

MaterialSizeMax CapacityWeightColor
PC +ABSA*B*C(mm) 210*2215*50SC8 PortsLC16 PortsPLC 1x8(SC) 0.6kgWhite
