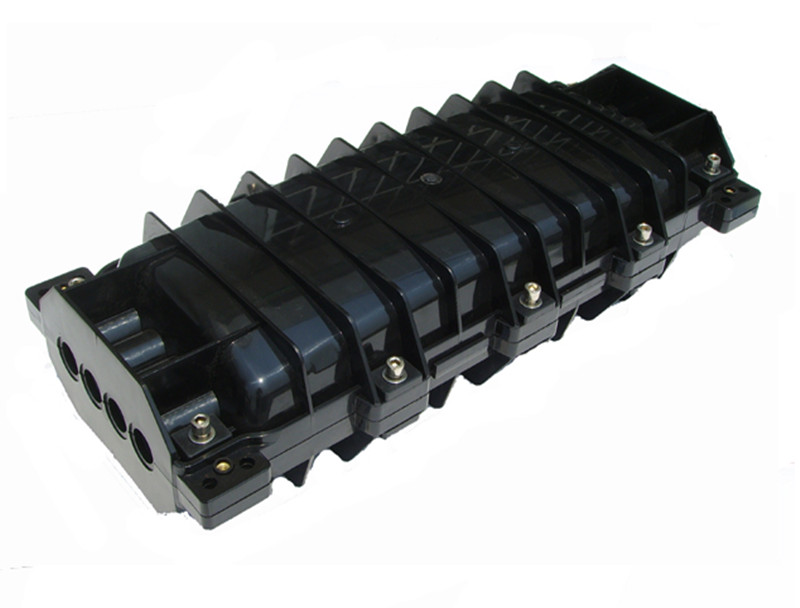

Product Name : Fiber Optic Splice Closure Horizontal Type
Product Code : SNT-FOSC-IN-09-4
09-4 Fiber Optic Splice Closure
Maximum capacity:288
Seal way: Silica gel
The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,
The application of temperature :-40℃～65℃
| 09-4 Fiber Optic Splice Closure | |
| Product outlook size | 555*240*123 |
| Product material quality | PC(Polycarbonate) |
| Product weight | Approximately 5kg |
| Suitable Dia of cable | 8-23mm |
| Fibers/Tray | 12 Or24O48 |
| Max capacity(F) | 288 |
| Outside box size | 58.5*52*31 |
| Each packing quantity | 4 pieces |
