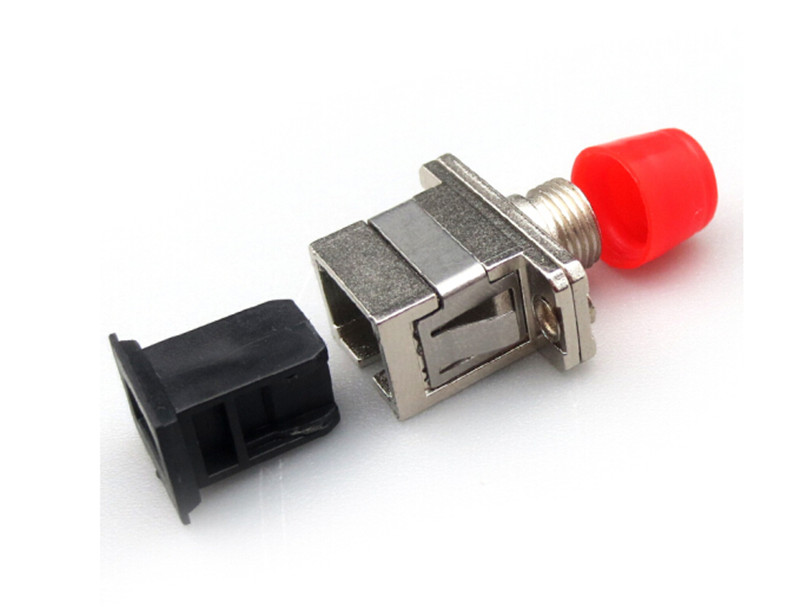

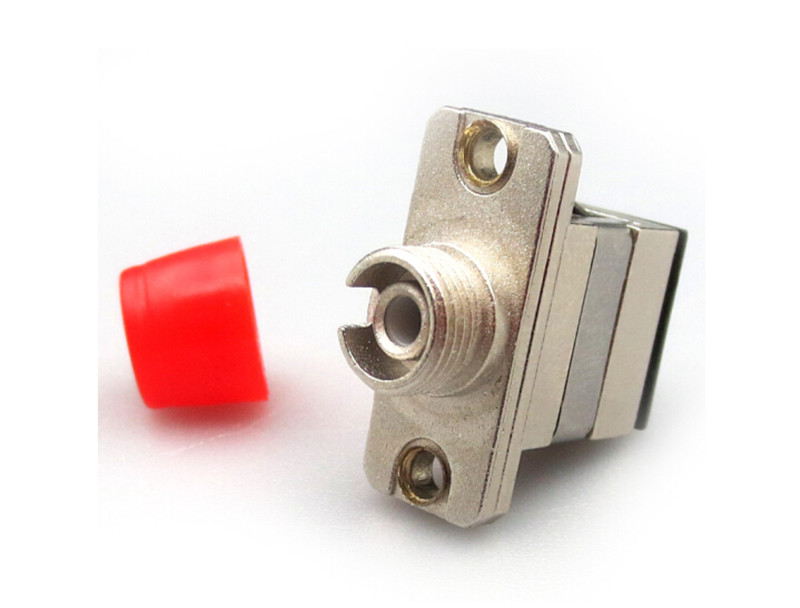

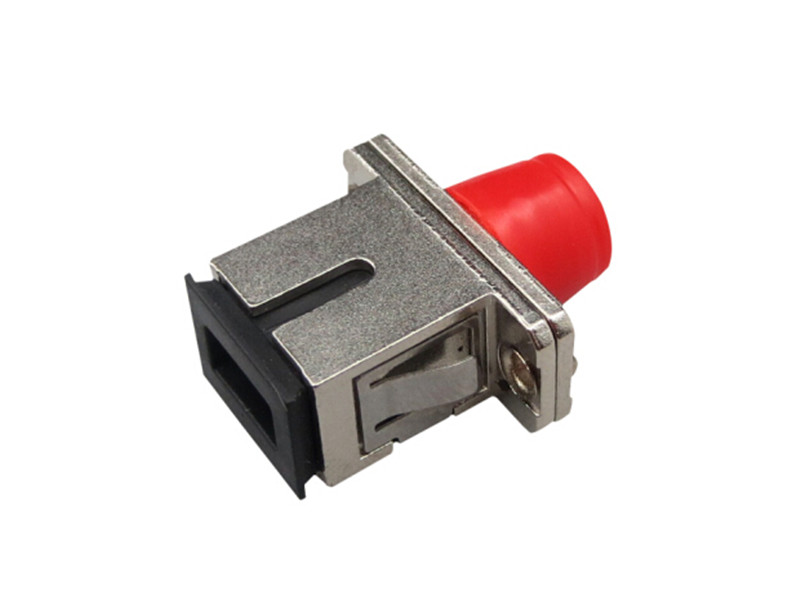

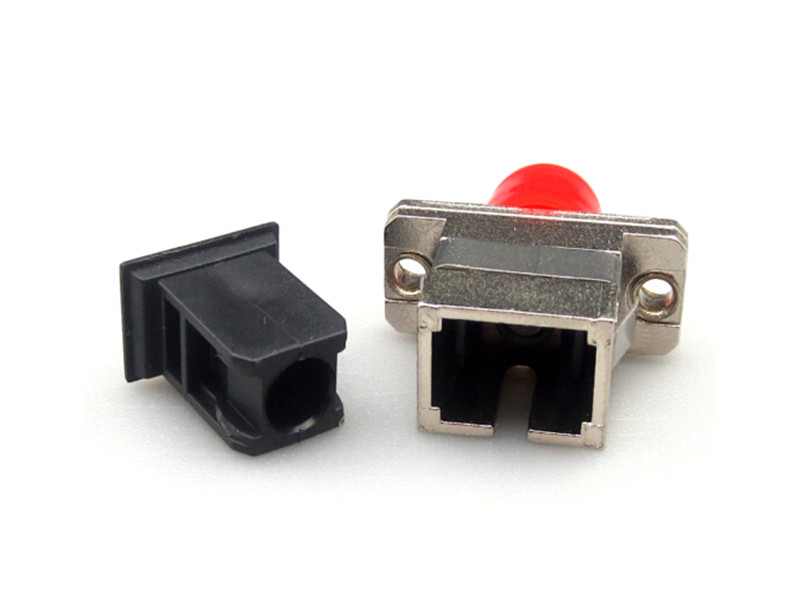

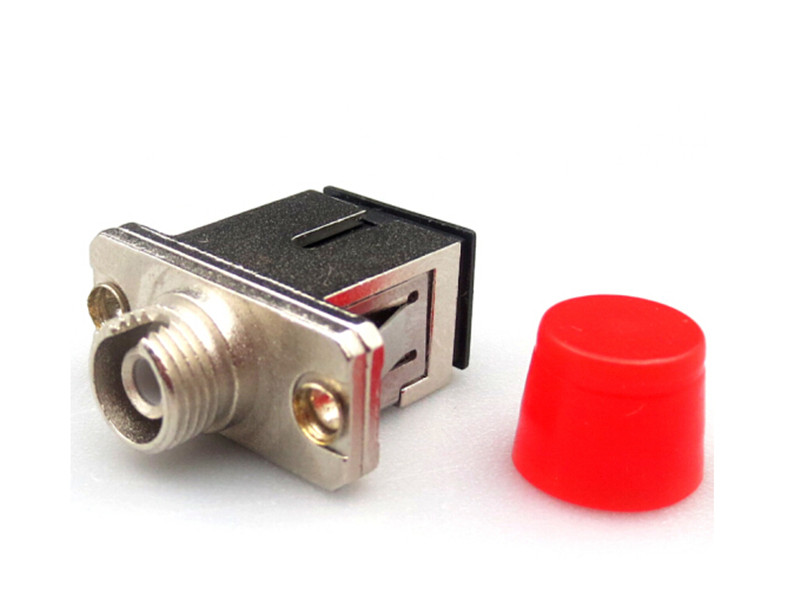

Product Name : Fiber Optic Adapter
Product Code : SNT-AD-FCSC-M
Description:
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Feature:
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Applications:
1.Fiber Optic Telecommunications
2.LAN (Local Area Network)
3.FTTH (Fiber To The Home)
4.CATV&CCTV System
5.High speed transmission systems
6.Fiber optic sensing
7.Industtial, Mechanical and Military
Specification:
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
