Product Name: 2 cores indoor FTTH drop cable FRP LSZH Round
FTTH Cable GJXFH FRP
Product Code: SNT-GJXFH-2C-WHT

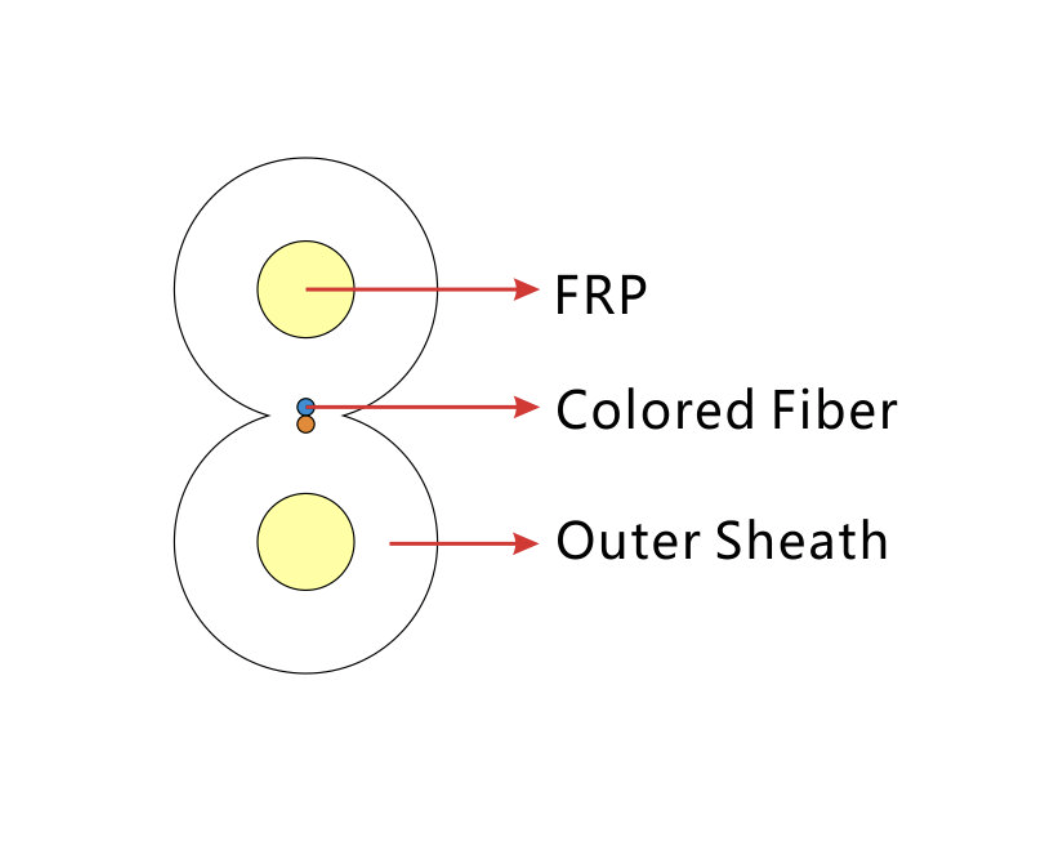

The optical fiber unit is positioned in the centre. Two FRP (/KFRP/steel wire) are placed at the two sides. Then the cable is completed with a black or color LSZH/PVC sheath.
Applications:
Used in indoor cabling,especially used for FTTH.
Used as access building cable.
Features:
1.Compact structure of protable, convenient for indoor wiring.
2.Excellent resistance to lateral pressure protection design.
3.Soft, flexible, easy to splice, and high practicability.
4.Environmental protection. Low smoke, zero alogen and flame retardant sheath.
Cable Parametres:
| Fiber count (core) | Cable diametre (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N) | Bending Radius Static/Dynamic (mm) |
| 1 | (2.1±0.1)×(3.1±0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| 2 | (2.1±0.1)×(3.1±0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| 4 | (2.1±0.1)×(3.1±0.1) | 12 | 1000/2200 | 200/1000 | 15/30 |
Options:
1.Fiber Count:1 / 2 / 4 fibers
2.Fiber Type: G652D, G657A1, or G657A2 single-mode fiber, or other types of fiber.
3.Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC) or environmental low smoke zero halogen flame retardant polyolefin (LSZH).
3.Jacket Color: Black,Whitre, or customized.
