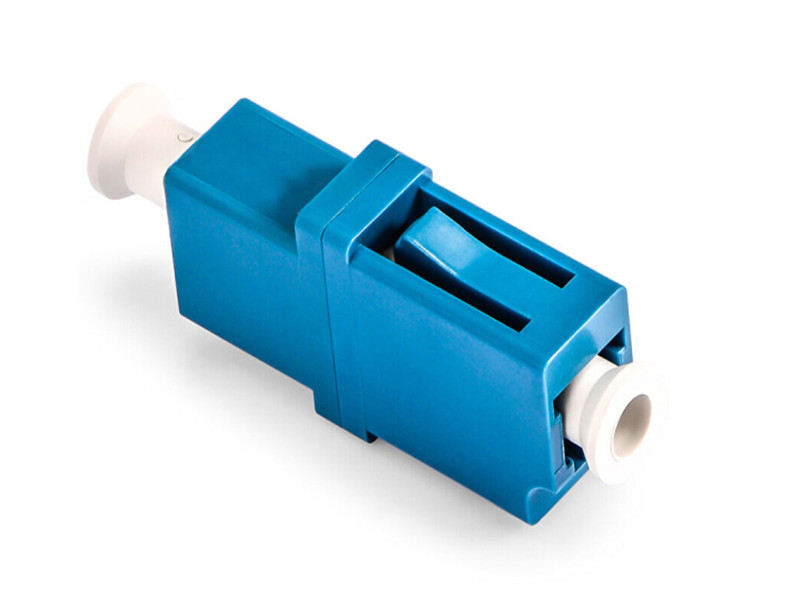

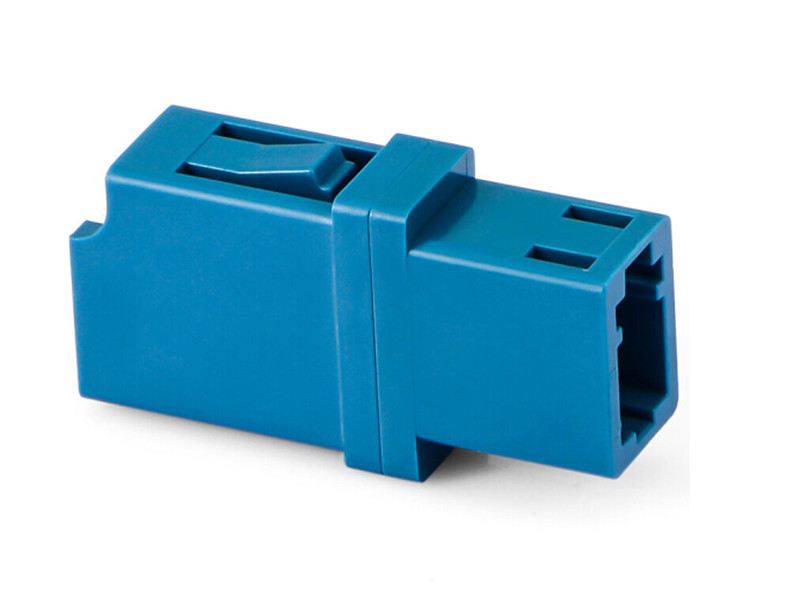

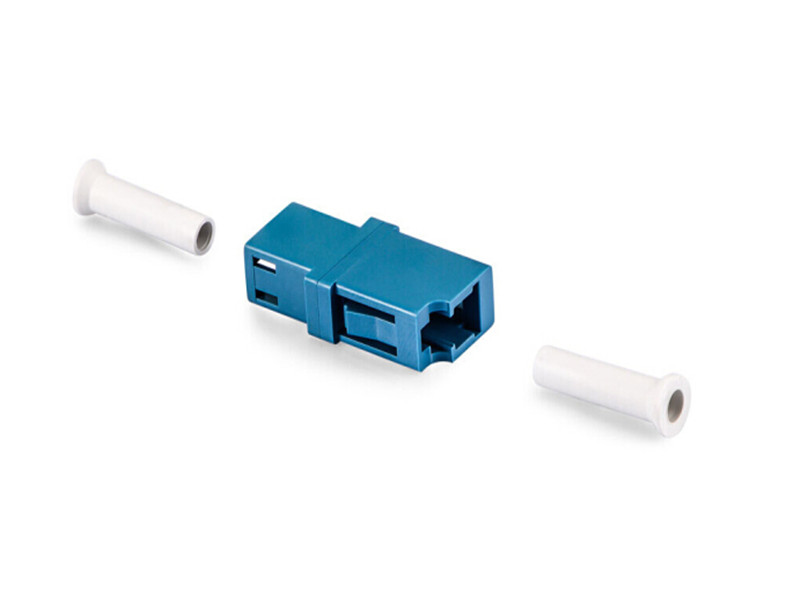

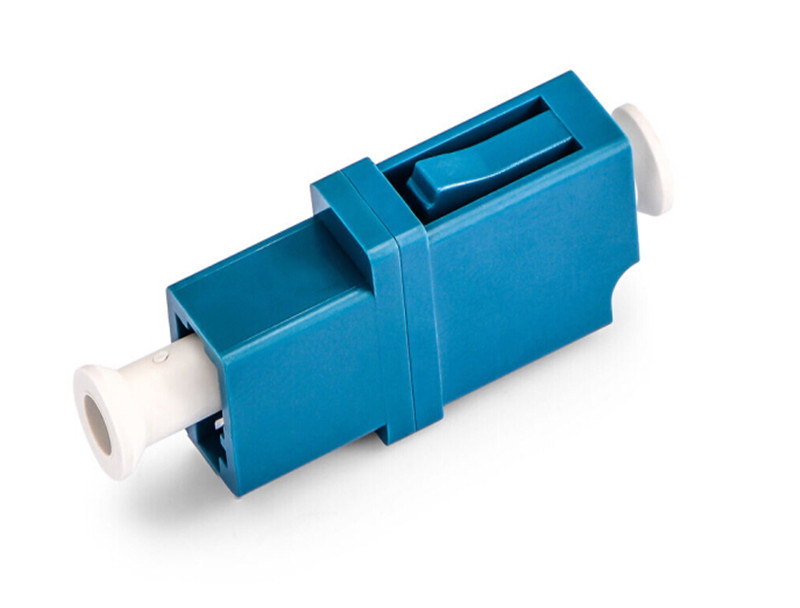

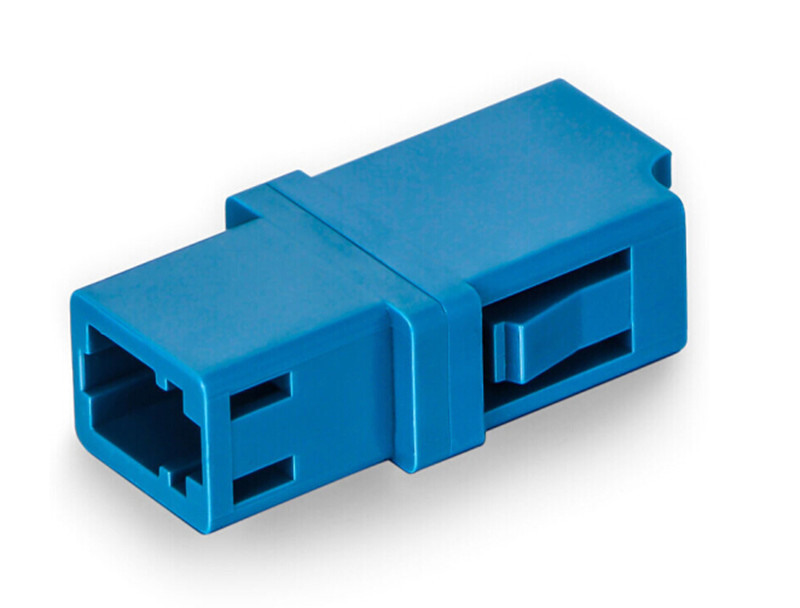

Fiber Optic Adapter


Product Type : SM SX LC/UPC


Product Code : SNTAD-SM-SX-LC

Key Features

1. Low insertional loss and back reflection loss

2. High prcision alignment

3. Nickel plated brass body

4. Use in Single-mode or Multimode applications

5 .Choice of housing material and sleeve material

6. ISO9001:2008,ROHS compliance



Product Applications

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks


Product  Specification

Parameter   Unit                                               LC, SC, FC, ST
                                                        SM     MM
                      PC    UPC   APC     PC
Insertion Loss (Typical)    dB                     ≤0.2   ≤0.2   ≤0.2    ≤0.2
Return Loss    dB                     ≥45   ≥50   ≥60    ≥30
Exchangeability    dB                    ≤0.2
Repeatability    dB                    ≤0.2
Durability  Time                  >1000
Operating Temperature    °C                  -40~75
Storage Temperature    °C                  -45~85
