Optical Fiber Mechanical Splicer


Product Code : SNTMS-2529

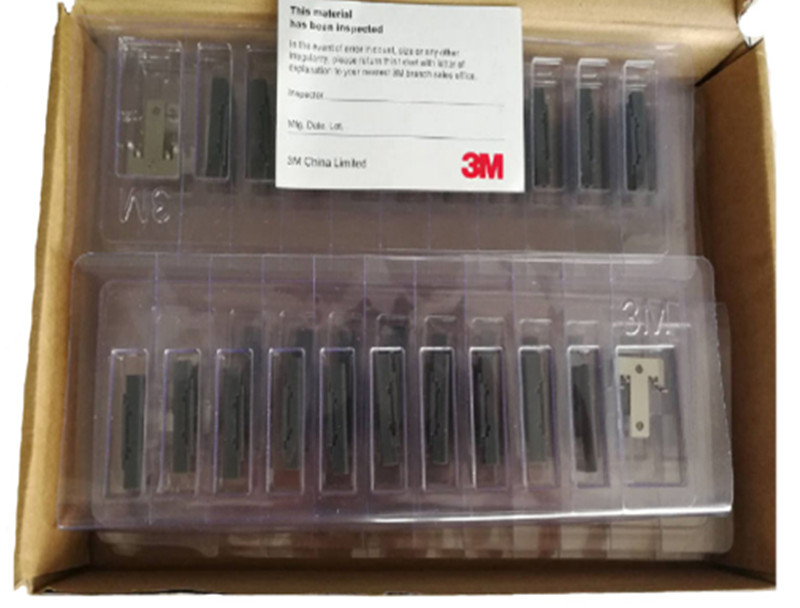

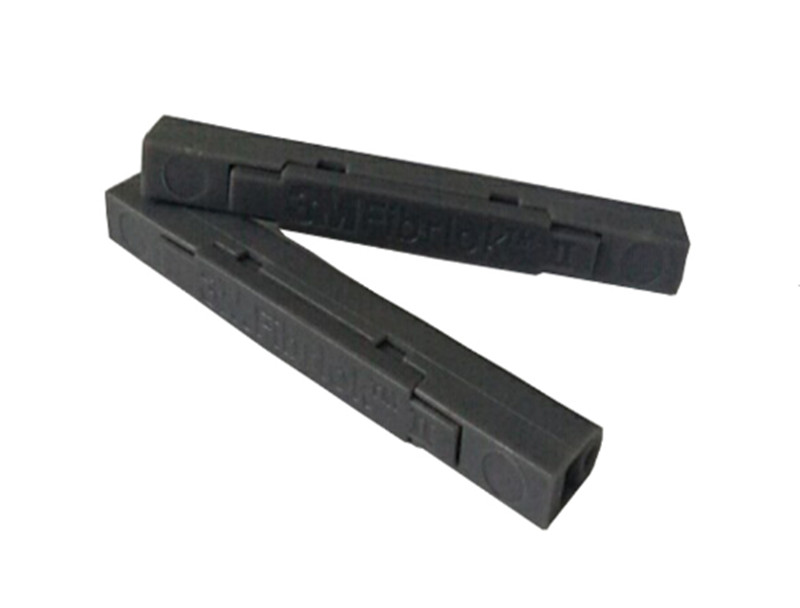

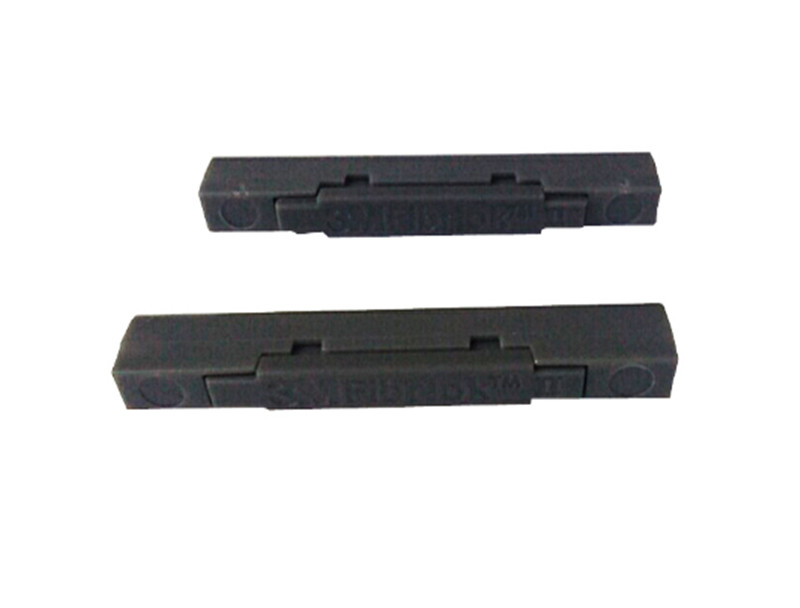

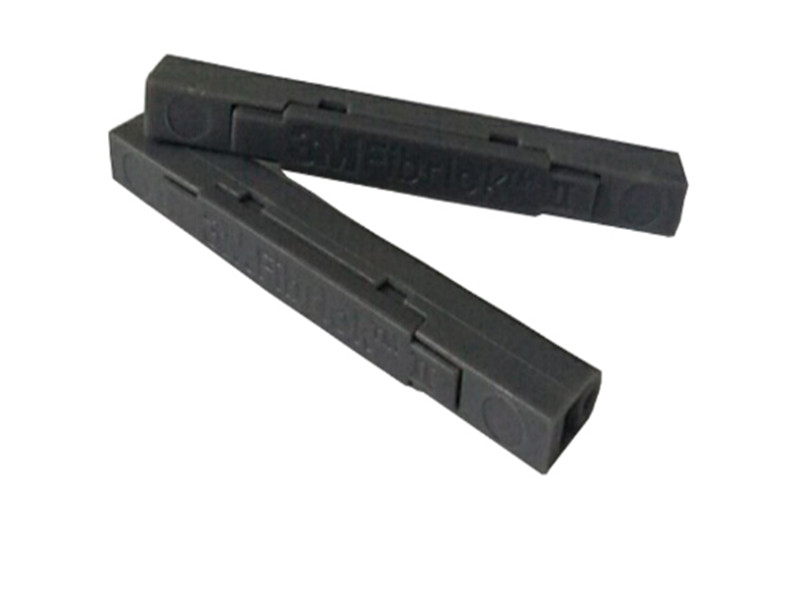

The fiber optic splice 3M ™ fibrlok ™ II 2529 provides a precision, simple and low cost method of fiber optic splicing. The splice design uses an articulated metal splice element that is held within a molded plastic body and cap to provide a fast, permanent, low loss splice; the fibrlok has an insertion loss of <0.2db with a minimum tensile load of 4.4n (1.0lb-F) and splice reflection no greater than -40db



Applications:

Fast Ethernet, LAN and WAN data communication

High Speed company servers

Multiplexer, switches and routers

Optical and ATM access network equipment

Optical transport and telecommunications, FTTH, fttd, FTTx

Switching equipment



Features:

Fast and easy to use
Inexpensive
Splices can be reopened and fibres repositioned if required
Minimal tooling required (other than for fibre preparation)
Independent of fibre type being spliced



                                                                                                          Specification:


Test  project Technology parameters
 Applicable scopeφ0.25 mm &φ0.90 mm fiber
Fiber diameter 125μm ( 657A & 657B )
 Tight cladding diameter 250μm & 900μm
Applicable mode Single mode& multimode
 Operating time About 10s(do not contain fiber processing)
 Insertion loss≤ 0. 10dB(1310nm & 1550nm)
Return loss≤ -40dB
Naked fine solid tight force>5 N
Tight packet layer clamping forces>8 N
 Using temperature-40~+75°C
 Repeated use (ten times)Δ IL ≤ 0.2dB Δ  RL ≤ 5dB
