ODF


Product Name : ODF

Product Code :  SNT-ODF-R12

Description

Fiber optic distribution frame(ODF) integrates fiber splicing, storage and cable connections together in a unit.

It can manage both bundle type and ribbon type fiber cables, used in center office, optical cross connection point and network access point in fiber access network projects. It is with large working space to integrate the pigtail, cables and adapters for fiber management.

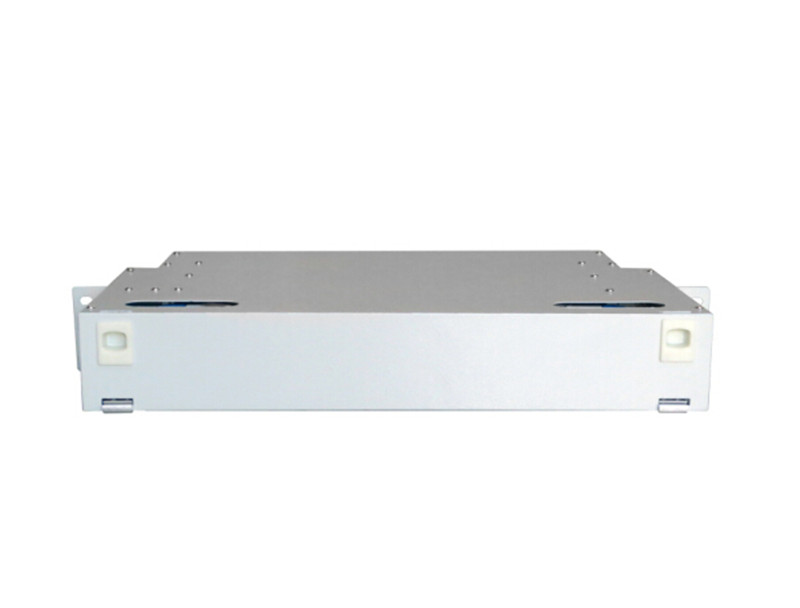

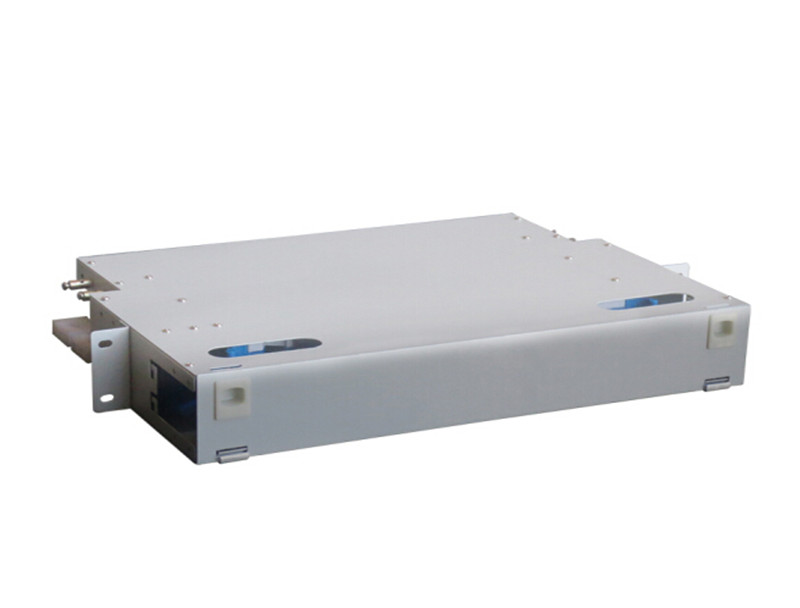

Rack mounted fiber optic patch panel is standard 19 inch design, cold roll steel box, with blue or green splice trays inside, front & rear cover can be opened.





Feature

Cold-roll steel, electrostatic painting

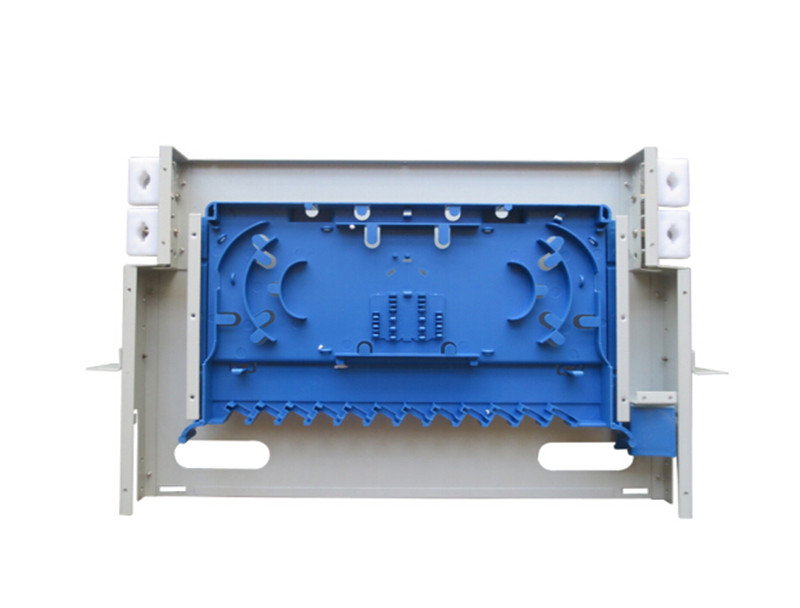

Modular design blue splice tray, ABS plastic; 12 cores per tray FC, SC, LC… adapter can be loaded.

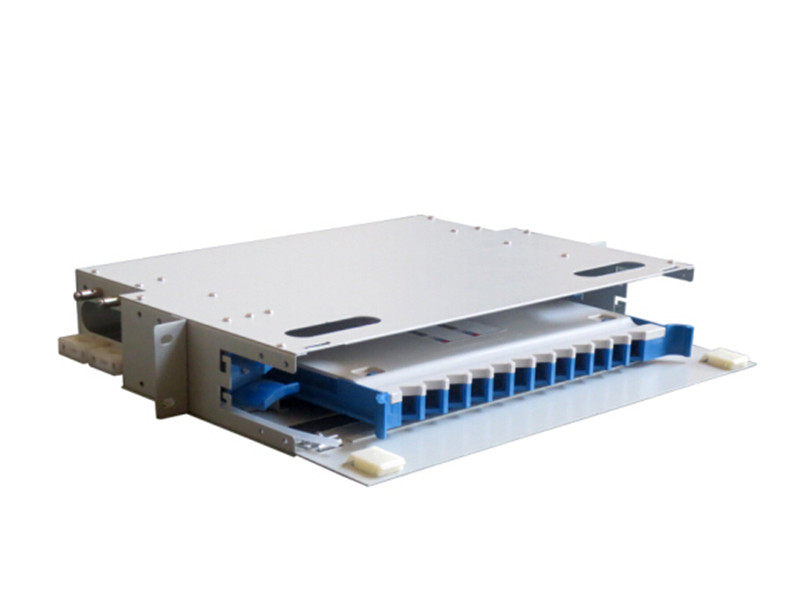

Slide out splice tray for easy cable management Suitable for 19" standard optic distribution cabinets

With front cover; rear cover can be opened, convenient for cable management. Cable entry ports suitable for single fiber, bundle & ribbon fiber cables Reasonable design ensures the cables are in good order

Rack mounted type, indoor using;

White, black, grey … color painting optional 12, 24, 48, 96 … capacity customized






Application

Telecommunications subscriber loop Fiber to the home (FTTH)

LAN/WAN CATV




Specification

1. Under the general air pressure, 500VDC, insulation resistance≥1000MΩ;

2. The high voltage protection can undertake 3000VDC, no spark-through and flashover within 1 minute.

3. Technical and quality grade reaches the ISO/IEC11801 requirement.

4. Working temperature-20°C~+55°C;

5. Working humidity≤95% (30°C);

6. Working atmospheric pressure 70~106KPa





Order Information
ModelCapacityHeightDimensionRemark
ODF-R144144 cores7U482x300x340mm12pcs of splice tray inside
ODF-R9696 cores5U482x300x254mm8pcs of splice tray inside
ODF-R7272 cores4U482x300x200mm6pcs of splice tray inside
ODF-R4848 cores3U482x300x140mm4pcs of splice tray inside
ODF-R3636 cores2U482x300x70mm3pcs of splice tray inside
ODF-R2424 cores2U482x300x70mm2pcs of splice tray inside
ODF-R1212 cores1U482x300x50mm1pcs of splice tray inside
