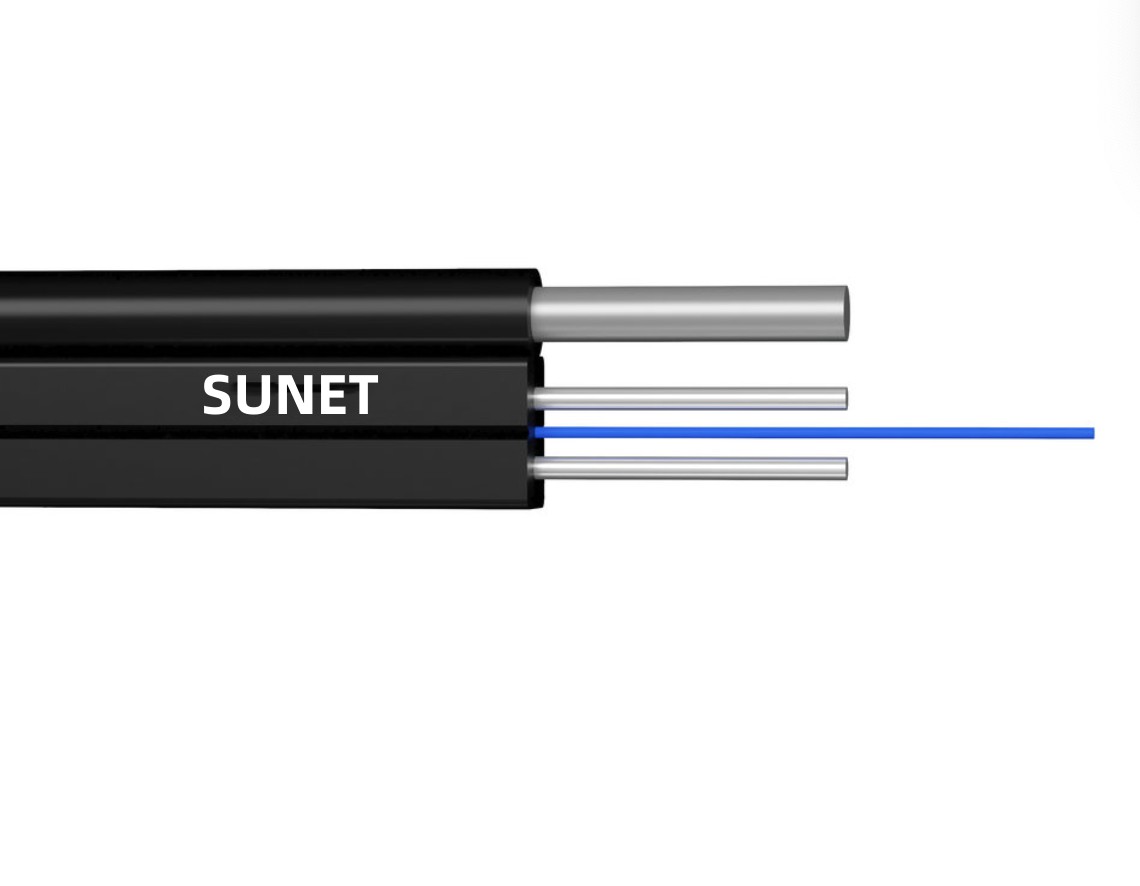

Product Name: 3 Steels outdoor FTTH drop cable 1 Core
FTTH Cable GJYXCH
Product Code: SNT-GJYXCH

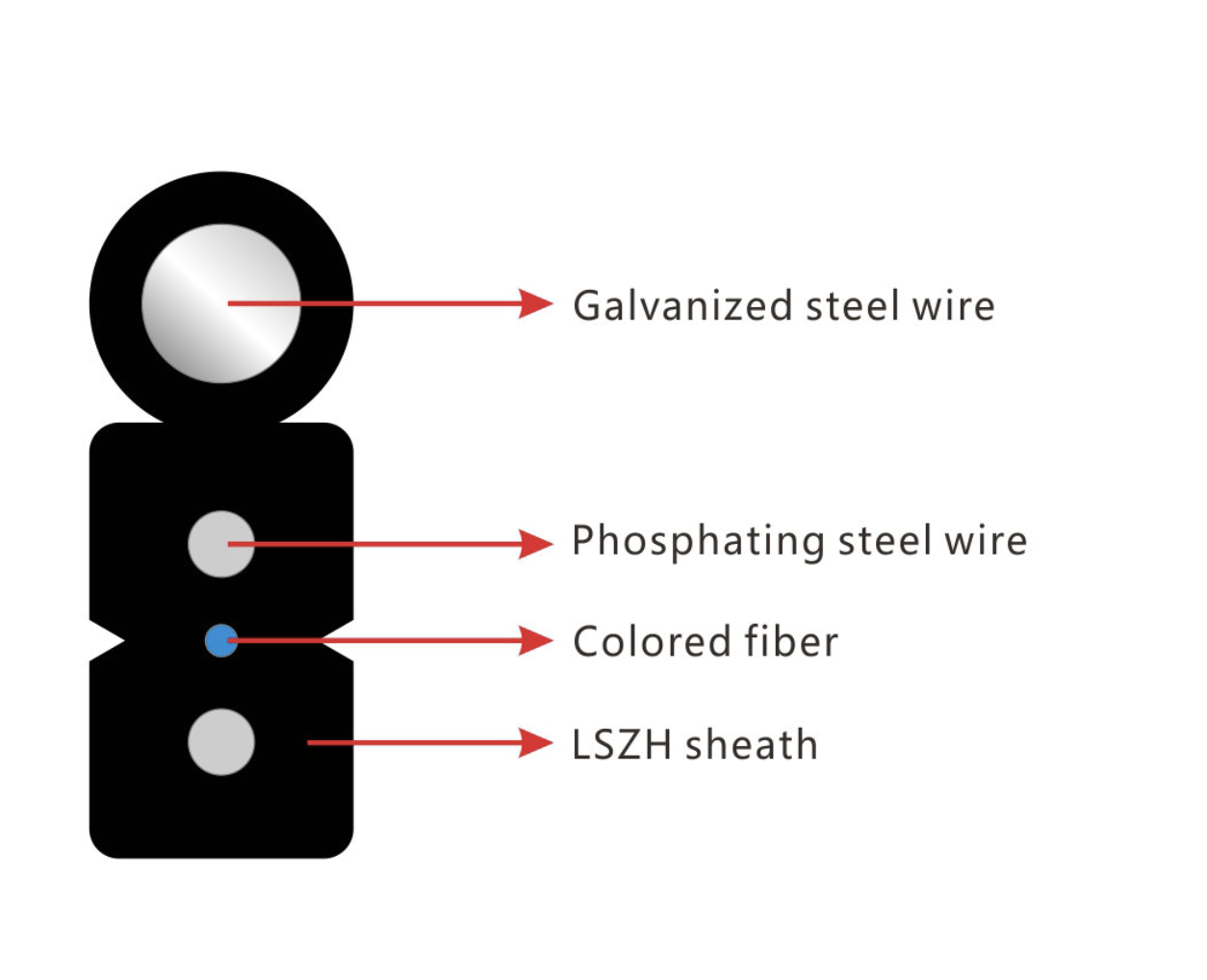

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.
| G.657 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
@1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
Technical Parameters:
Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long | Crush | Bending Radius Static /Dynamic mm |
1 | 2.0±0.2*5.2±0.2 | 21.5 | 300/600 | 1000/2200 | 20/40 |
2 | 2.0±0.2*5.2±0.2 | 21.5 | 300/600 | 1000/2200 | 20/40 |
4 | 2.0±0.2*5.2±0.2 | 21.5 | 300/600 | 1000/2200 | 20/40 |
6 | 2.5±0.2*6.0±0.2 | 27.5 | 300/600 | 1000/2200 | 20/40 |
8 | 2.5±0.2*6.0±0.2 | 27.5 | 300/600 | 1000/2200 | 20/40 |
12 | 3.0±0.2*7.0±0.2 | 35.5 | 300/600 | 1000/2200 | 20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
