Outdoor FTTH drop cable 2cores

Product Name: Outdoor FTTH drop cable 2cores

FTTH Cable GJYXFCH FRP


Product Code: SNT-GJYXFCH-2C

Inquire Now Next Product
Description

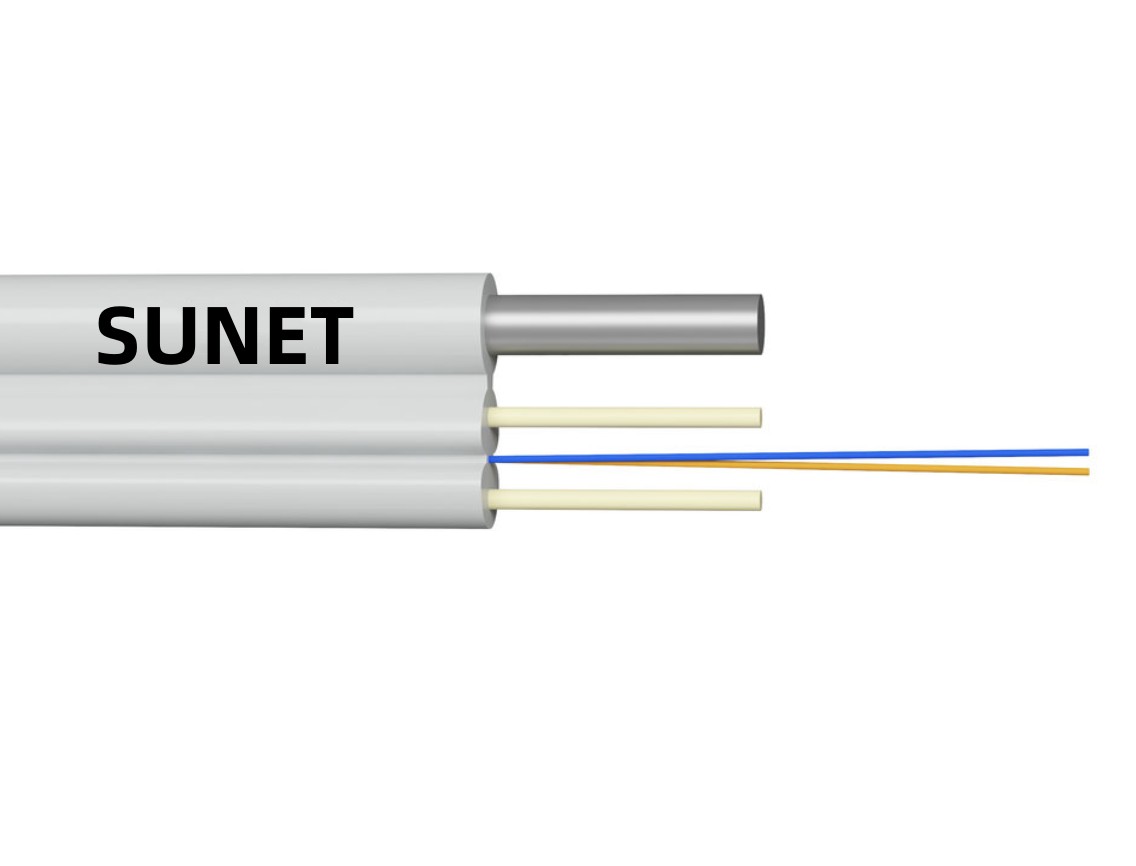

GJYXFCH is a type of outdoor FTTH drop cable reinforced with steel wire for enhanced tensile strength. It's designed for last-mile fiber access in environments where mechanical protection and durability are critical. The flat structure and bend-insensitive G657A2 fiber ensure both flexibility and performance.


Feature
- Soft and bendable, easy to deploy and maintenance.

- Smaller diameter, Light weight, and high practicability.

- Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

- Environmental protection- Low smoke, zero halogen and flame retardant sheath.





Technical data
Cable Parameters
Items
Specifications
Fiber Count
1,2,4,8
Colored Coating Fiber
Dimension
250±15μm
Color
Blue, Orange,etc
Strength Member
Dimension
0.45mm
Material
Phosphatizes steel
Self-Supporting Member
Dimension
1.0mm
Material
Steel Wire
Jacket
Dimension
5.2±0.2mm×2.0±0.1mm
Material
LSZH
Color
Black
