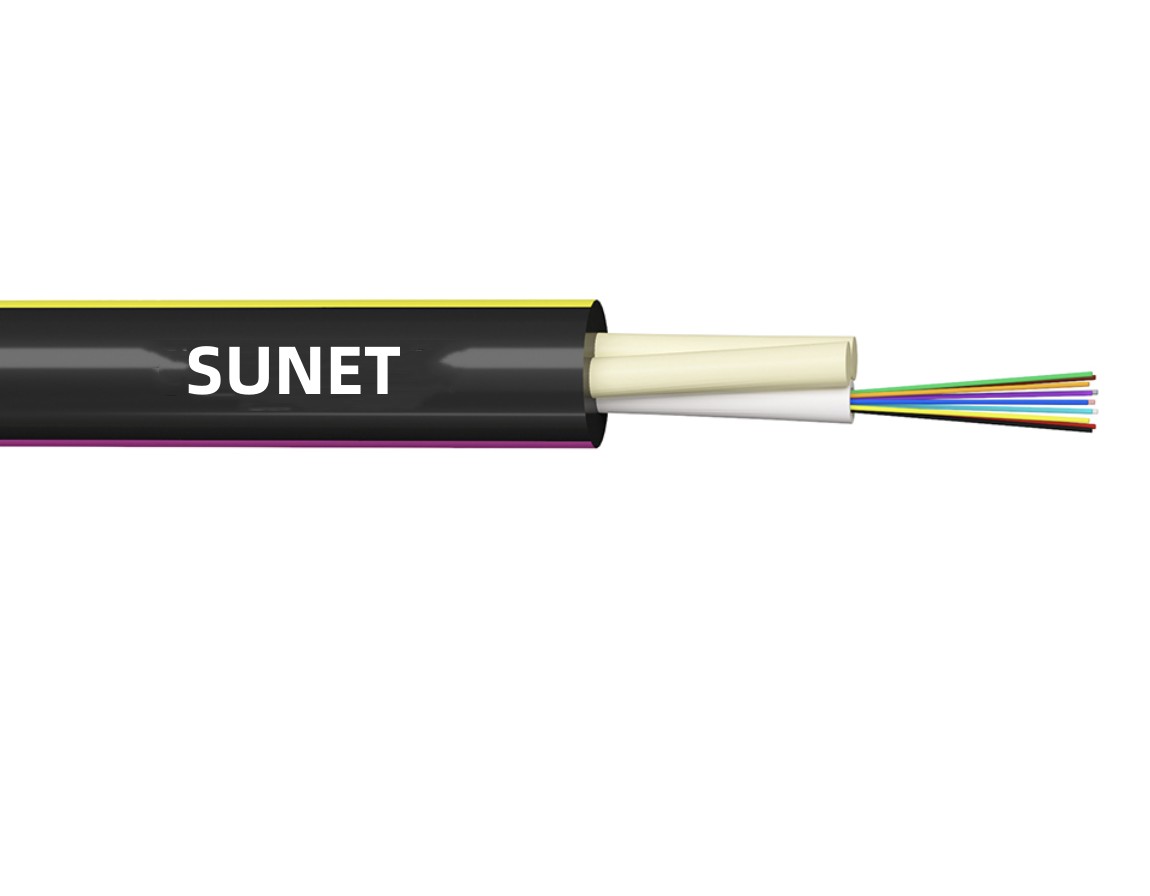

ASU cable

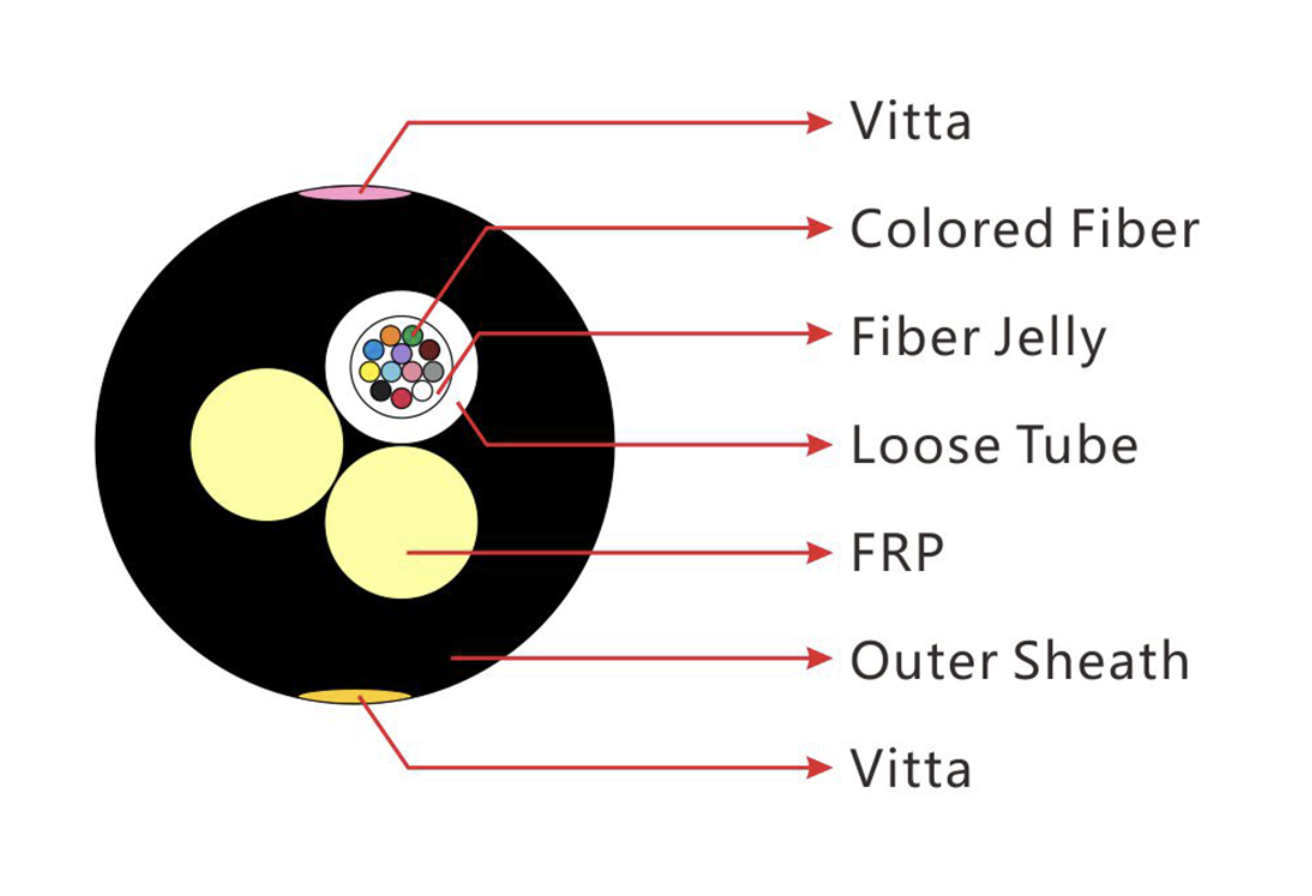

The cable structure is put the ф250μm colored fiber in the PBT loose tube, and two FRP as strengthen member, Cable surface is extruded with a PE outer sheath.

Features

•      ·Small Size and Ligth Weight
       ·Two FRP as strength member to provide good tensile performance
       ·Gel Filled or gel free , good waterproof performance
       ·Low price ,high fiber capacity
       ·applicable for short span aerial and duct installation

• Optial Charactoristics:


• 		G.652	G.655	50/125μm	62.5/125μm
  Atenuation              (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
  	@1300nm			≤1.0dB/km	≤1.0dB/km
  	@1310nm	≤0.36dB/km
  	@1550nm	≤0.22dB/km	≤0.23dB/km
  Bandwidth              （Class A）	@850			≥200MHZ·km	≥200MHZ·km
  	@1300			≥500MHZ·km	≥500MHZ·km
  Numerical Aperture				0.200±0.015NA	0.275±0.015NA
  Cable cut-off wavelength		≤1260nm	≤1480nm

•

  Technical Parameters:



• Cable Core	Unit	2F	4F	6F	8F	10F	12F
  No. Of Tubes		1	1	1	1	1	1
  No. Of fibers	core	2	4	6	9	10	12
  Fiber Counts in tube	core	2	4	6	9	10	12
  Cable Diameter	mm	6.6±0.5			6.8±0.5
  Cable Weight	Kg/km	40±10			45±10
  Allowable tensile Strength	N	Span=80，1.5*P
  Allowable crush resistance	N	1000N
  Operation temperature	℃	-20℃ to +65℃
