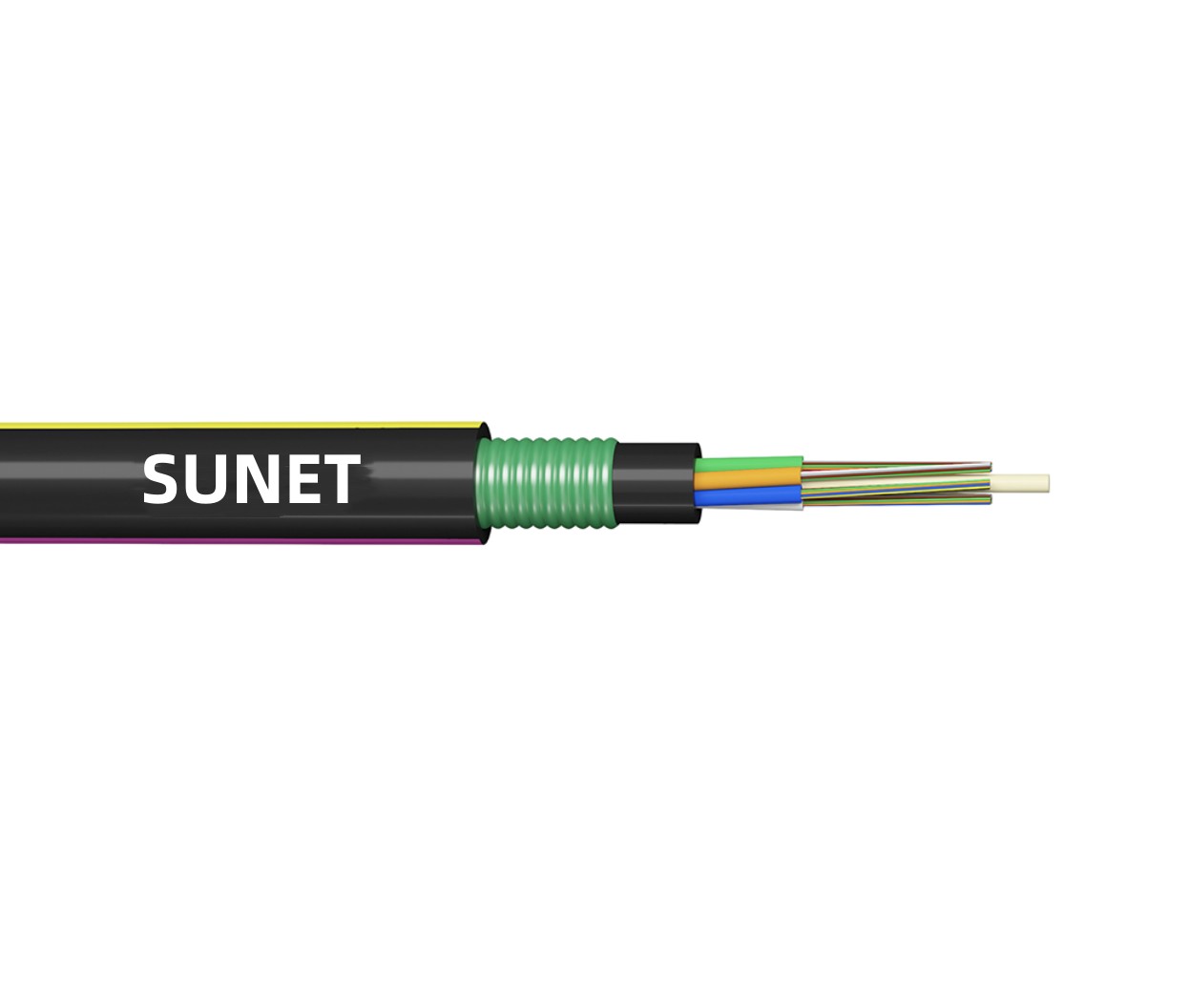

Product Name: GYTA53 cable Armored
Non-metallic Strength Member armored Cable（GYFTY53）
Product Code: SNT-GYTA53-AM

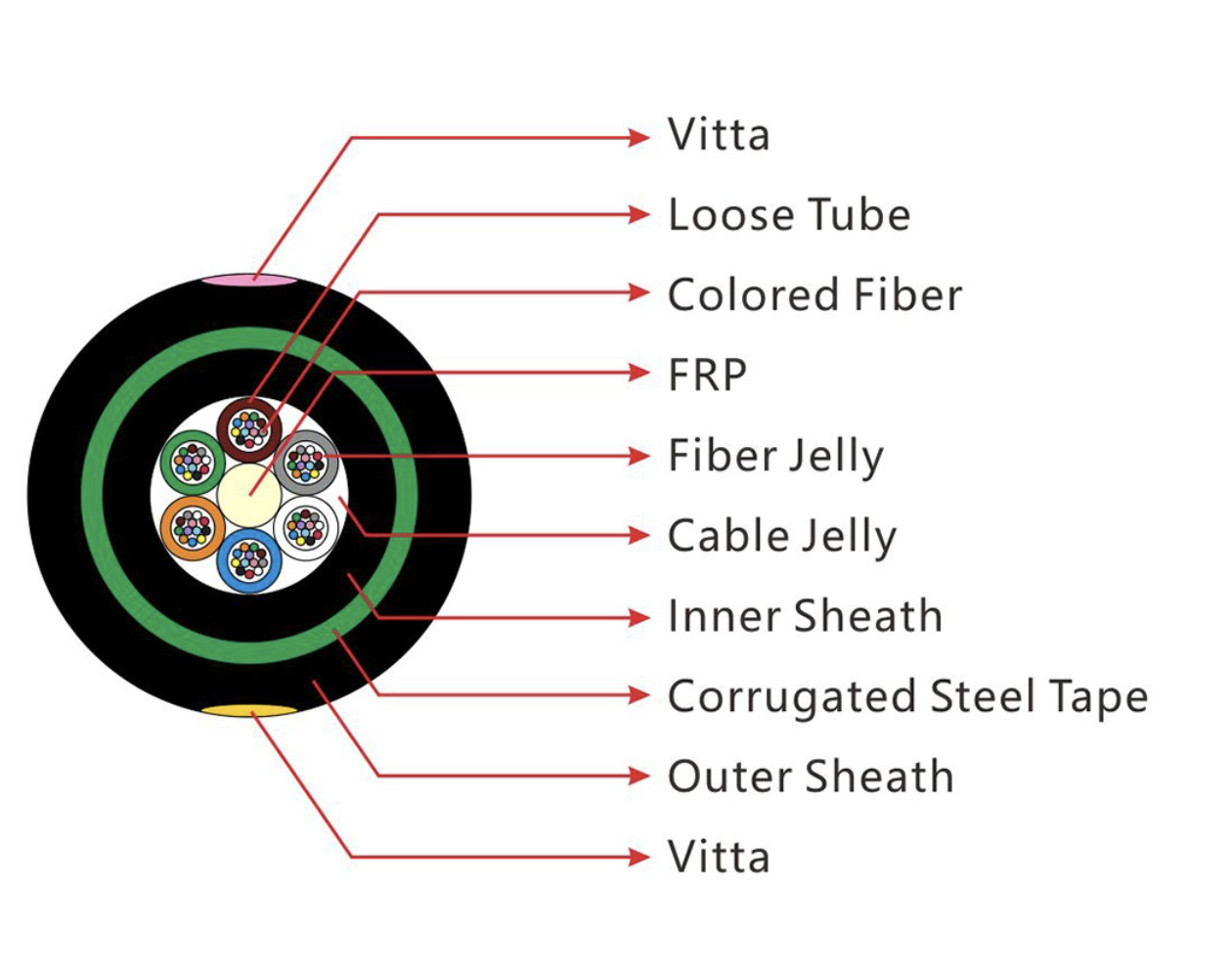

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.
Features
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters:
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static mm |
GYFTY53-2~6 | 2~6 | 1 | 7 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-8~12 | 8~12 | 2 | 6 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-14~18 | 14~18 | 3 | 5 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-20~24 | 20~24 | 4 | 4 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-26~30 | 26~30 | 5 | 3 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-32~36 | 32~36 | 6 | 2 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-38~42 | 38~42 | 7 | 1 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-44~48 | 44~48 | 8 | 0 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-50~60 | 50~60 | 5 | 3 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFT Y53-62~72 | 62~72 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-74~84 | 74~84 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-86~96 | 86~96 | 8 | 0 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-98~108 | 98~108 | 9 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-110~120 | 110~120 | 10 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-122~132 | 122~132 | 11 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTY53-134~144 | 134~144 | 12 | 0 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
