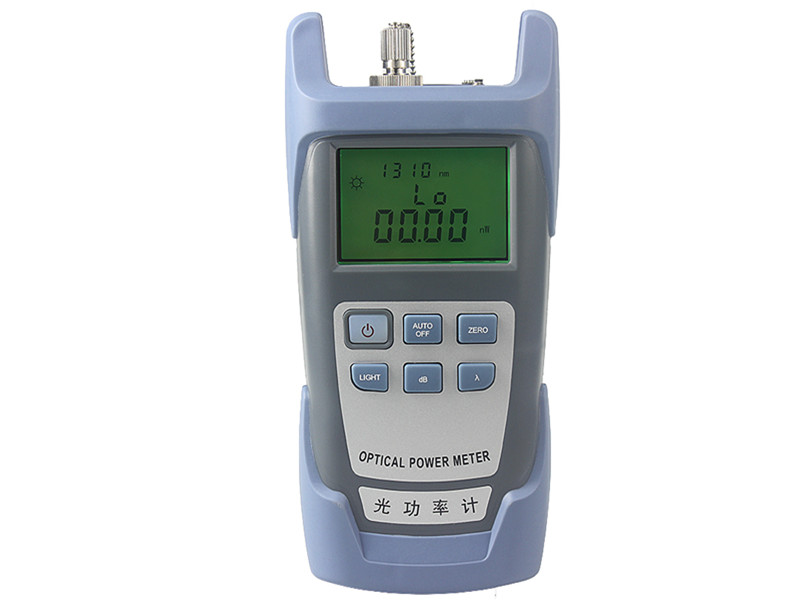

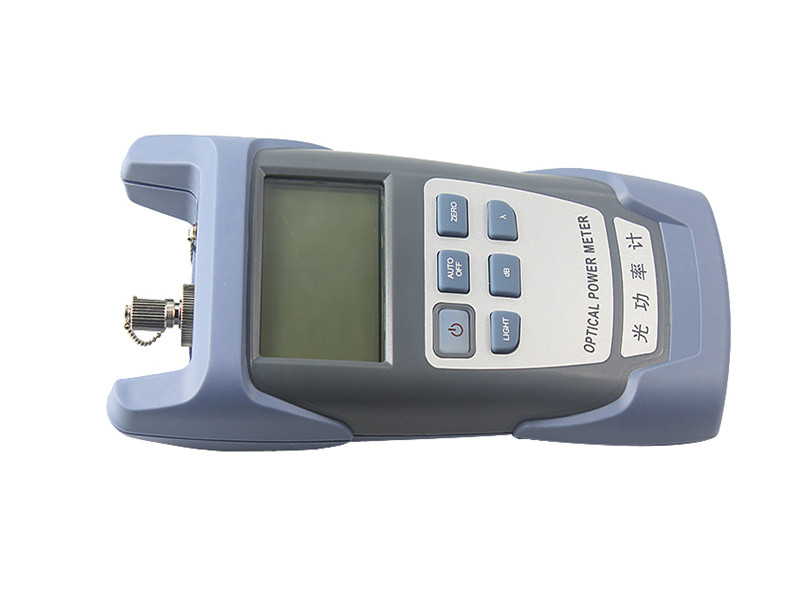

Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.
Features:
1.Self calibration by user himself

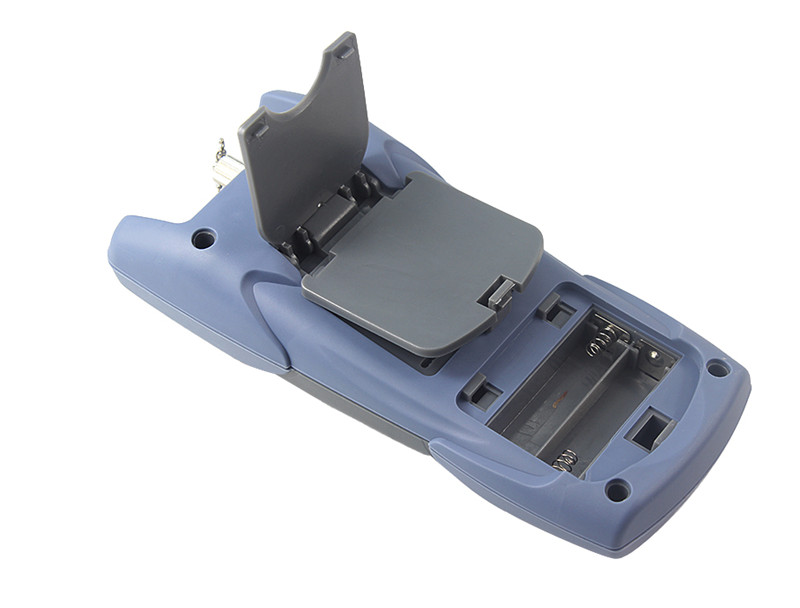

2.Rechargeable lithium battery supports continuous work for up to 48 hours.
3.Linear indicators (mW) and non-linear indicators (dBm) display in one screen

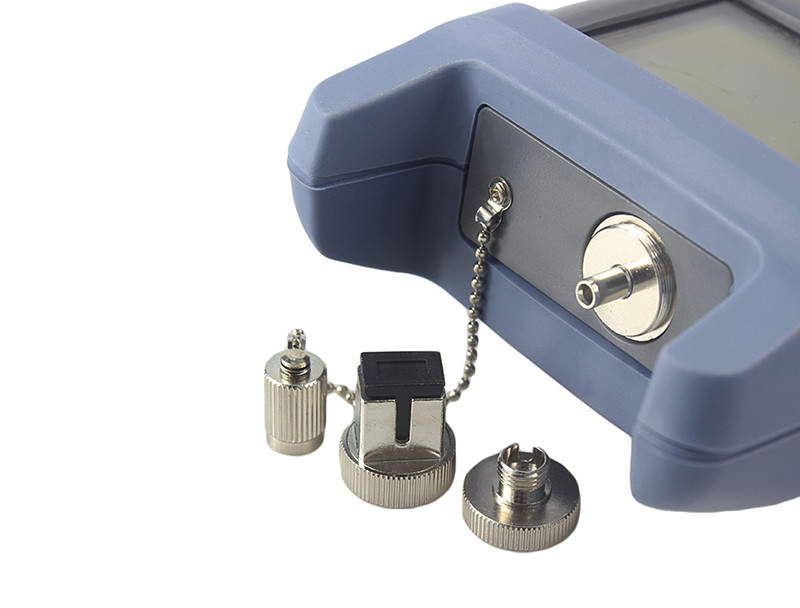

4.UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion
5.Optional auto power-off ability
6.BacklightON/OFF
Technical Parameters:
Size: 190*90*40mm
Fiber wavelength: 850/980/1300/1310/1490/1550/1625nm
Measurement Range(dBm): -70dBm~+10dBm
Connector: FC/SC/ST Interchangeable
Weight:0.38KG
