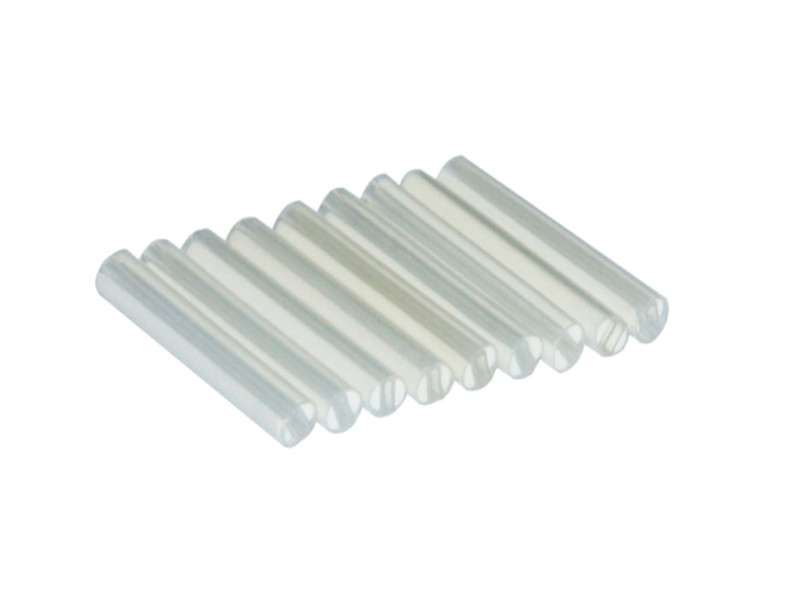

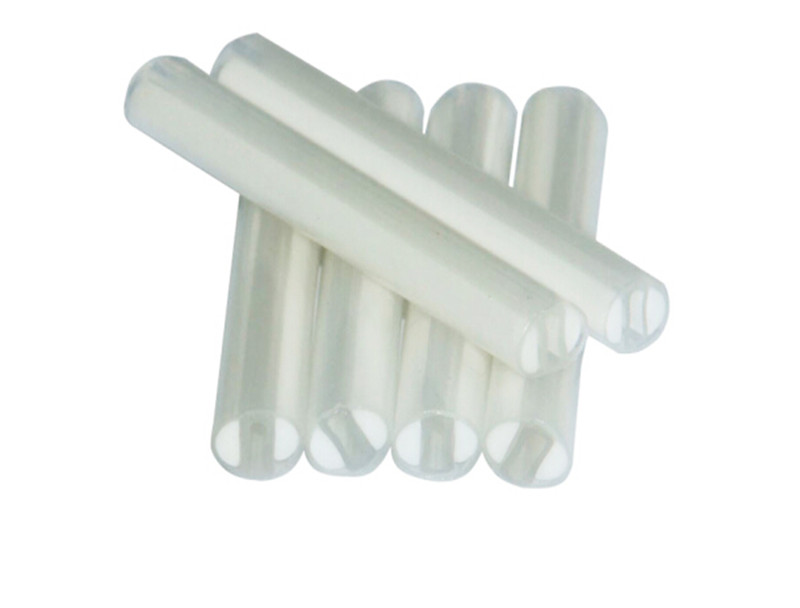

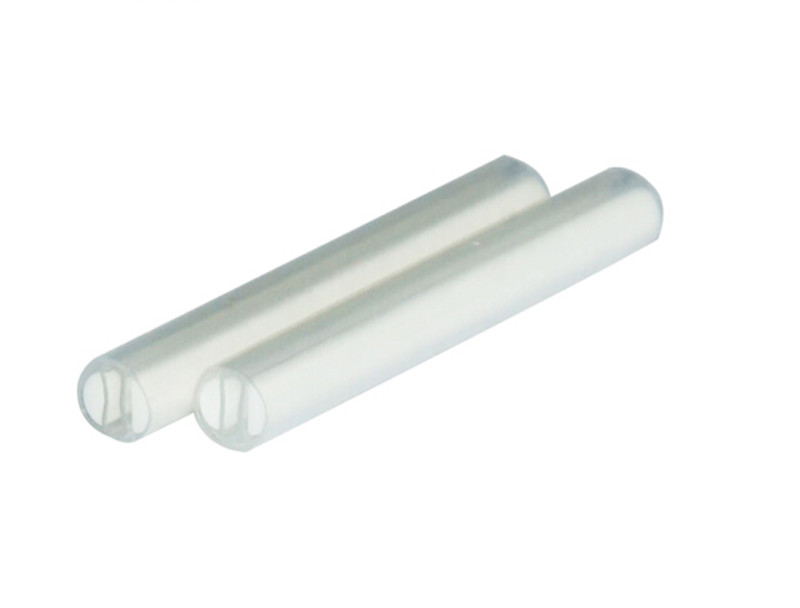

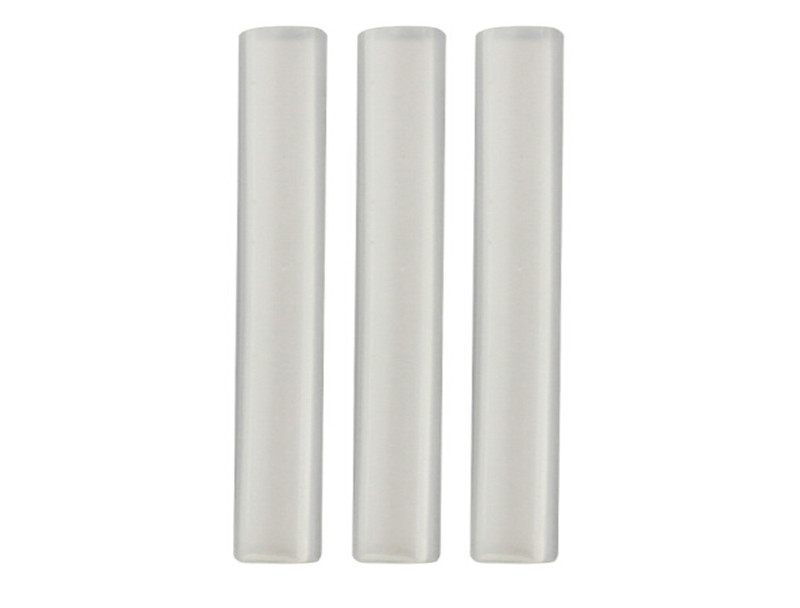

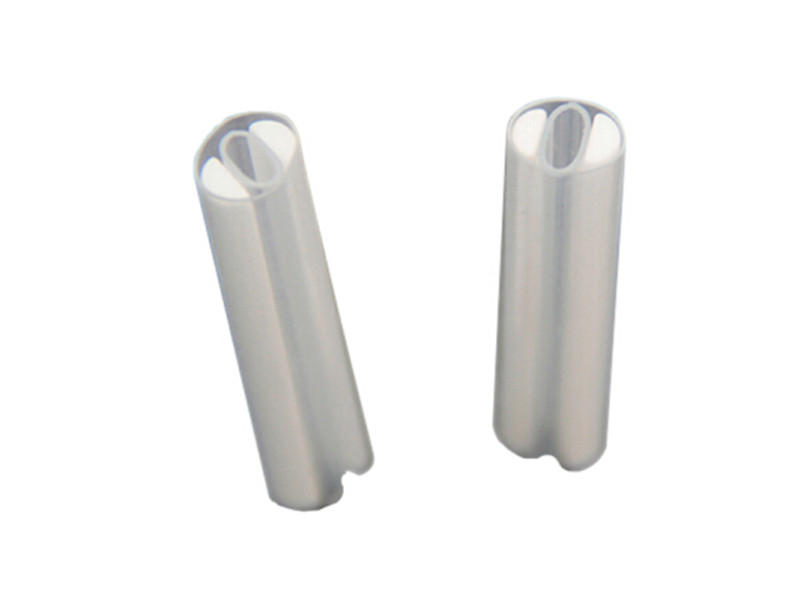

Ribbon Optical Fiber Heat Shrinkable Tube


Product Type : dual ceramics for ribbon cable


Procuct Code : SNTSS-RB-D-40MM

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.


Optic Fiber heat shrink tube parameters:

Shrinking Temperature (°C)110 ~ 130
Radial Shrinking Rate (%)>50
Axial Shrinking Rate (%)<10
Low Temperature PropertyNo crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C)-55°C ~ + 135°C
Normal Operature Relative Humidity≤95%
Spark- over Strength (kV/mm)≥20
Tensile Strength (Mpa)20
Loss at -40°C0.03dB
Loss at +60°C RH95%0.02dB
