Description

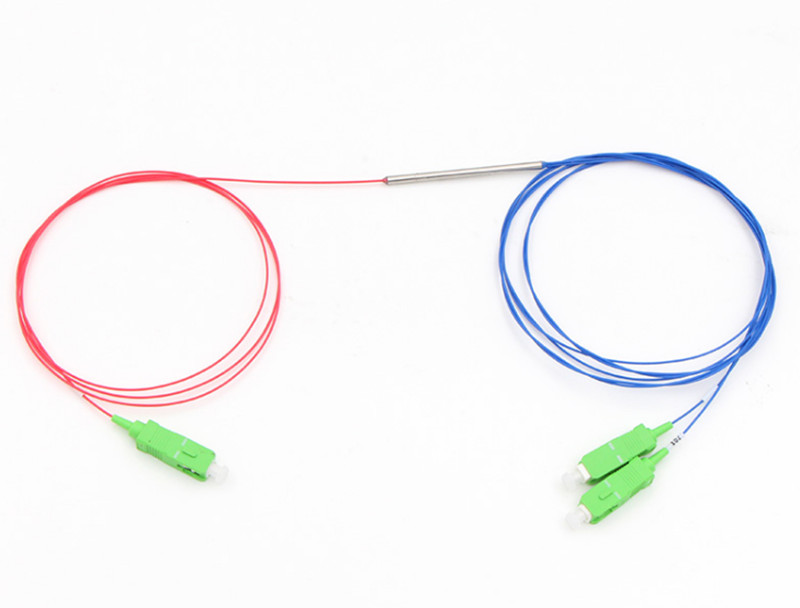

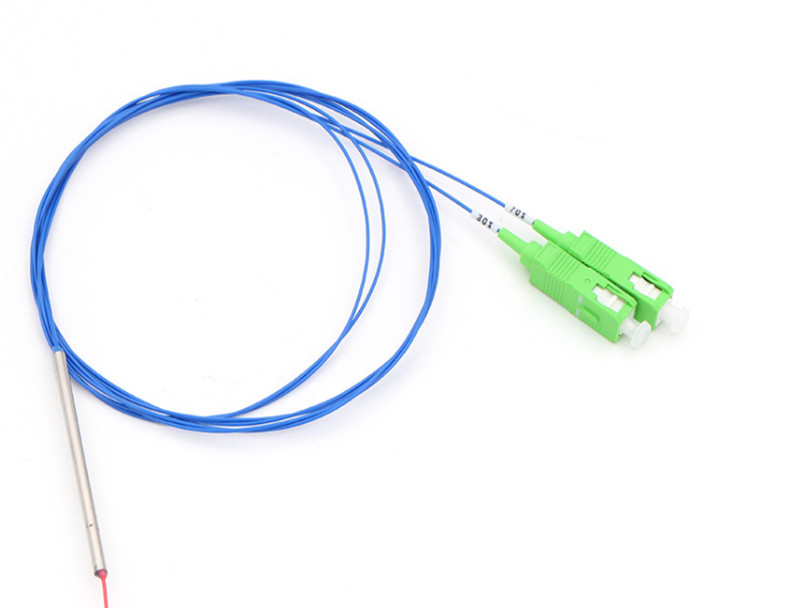

1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.Sunet provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
Sunet offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
Features
Low Insertion loss
Wide Operating Wavelength
Compact Size
Excellent Environmental & Mechanical Stability
Applications
FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Subscriber Loop
Fiberoptic Instruments
Fiber Sensors
Other applications in fiber optic systems
| Center Wavelength | 1310nm/1490/1550nm | ||||
| Bandwidth | ±20nm | ±40nm | |||
| Excess Loss | ≤0.1dB(0.05dB typ.) | ||||
| Coupling Ratio | 50/50 | 40/60 | 30/70 | 20/80 | |
| Typ. Insertion Loss(Db) | 3.05 | 4.2/2.4 | 5.4/1.8 | 7.1/1.1 | |
| Max. Insertion Loss(dB) | 3.4 | 4.4/2.5 | 5.6/1.8 | 7.4/1.1 | |
| Polarization Sensitivity | 0.1 | 0.1 | 0.15/0.1 | 0.15/0.1 | |
| Directivity | (1*2) ≥55dB, (2*2)≥60dB | ||||
| Operating temperature | -40 ~ +80 °C for package A,B | ||||
| -20 ~ +70 °C for package C,D | |||||
| Thermal Stability | ≤0.1dB over -40 ~ +80 °C | ||||
| Lead Length | 1m, others on request | ||||

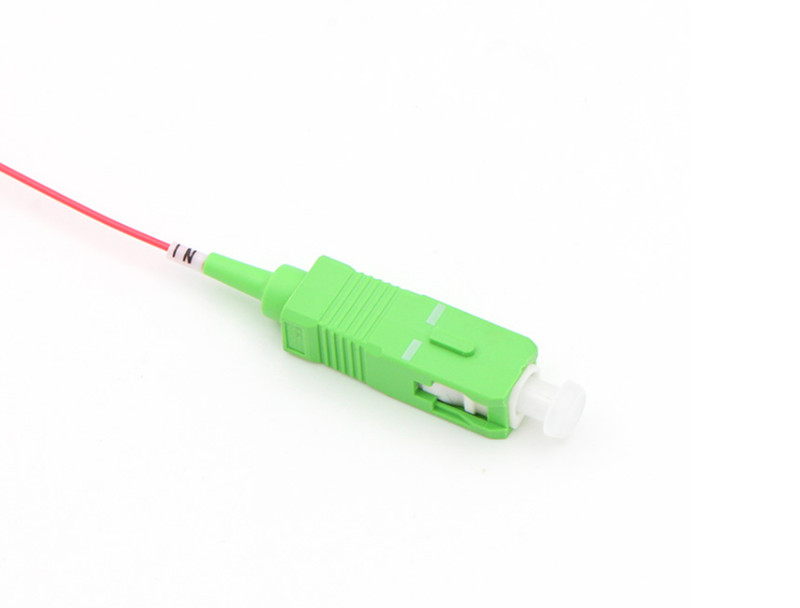

| Lead Type | Bare fiber, 0.9mm , 2.0mm, 3.0mm | ||||

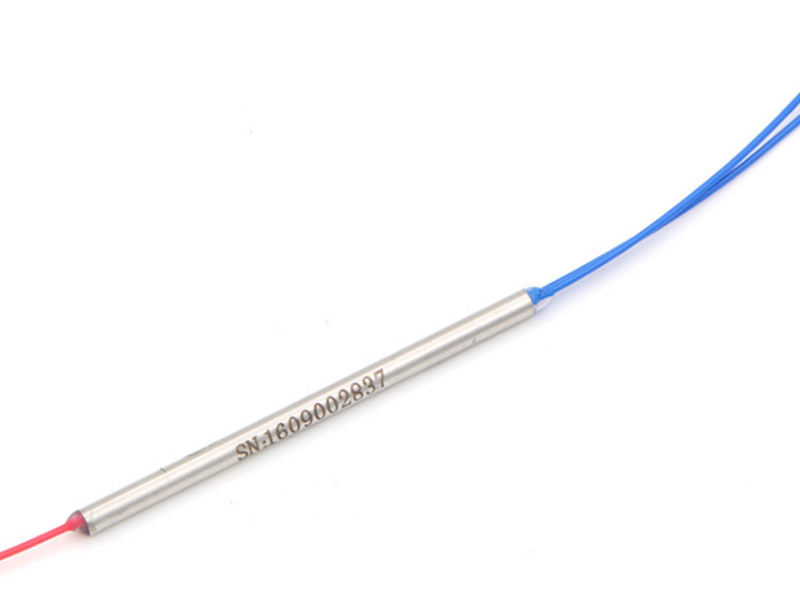

| Package type | A: Φ3.0mm*52mm | B: Φ3.5mm*70mm | |||
| C: 90mm*16mm*9mm | C: 106mm*79mm*10mm | ||||
