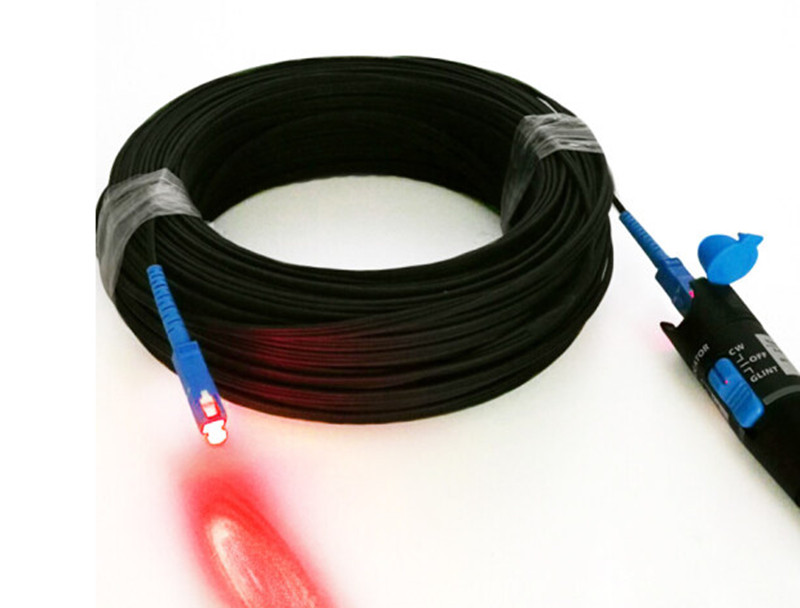

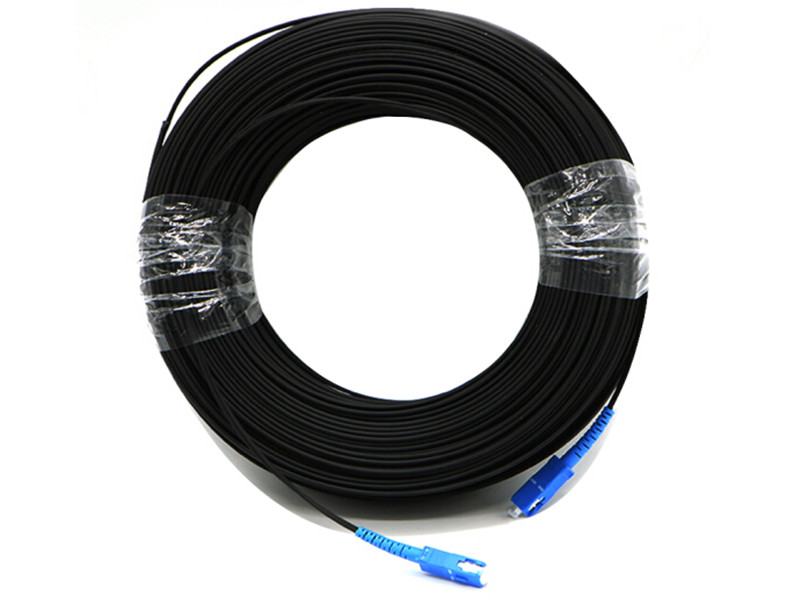

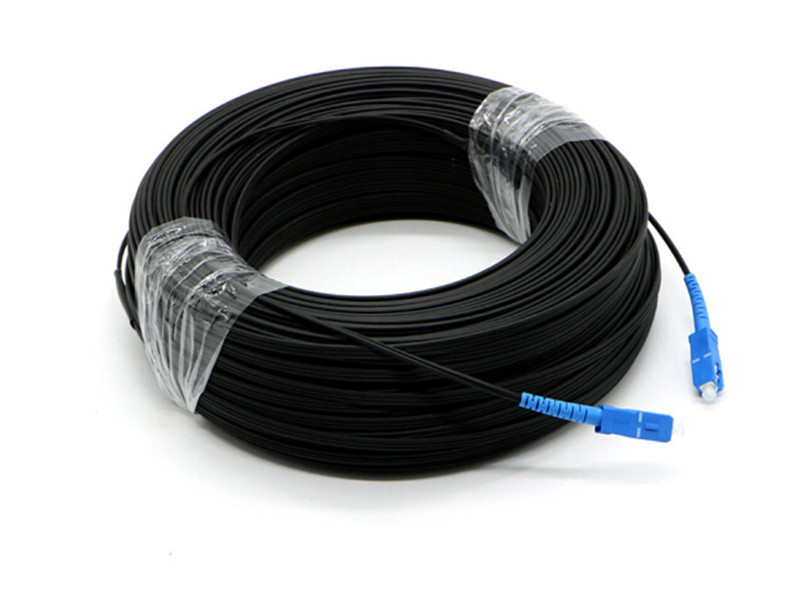

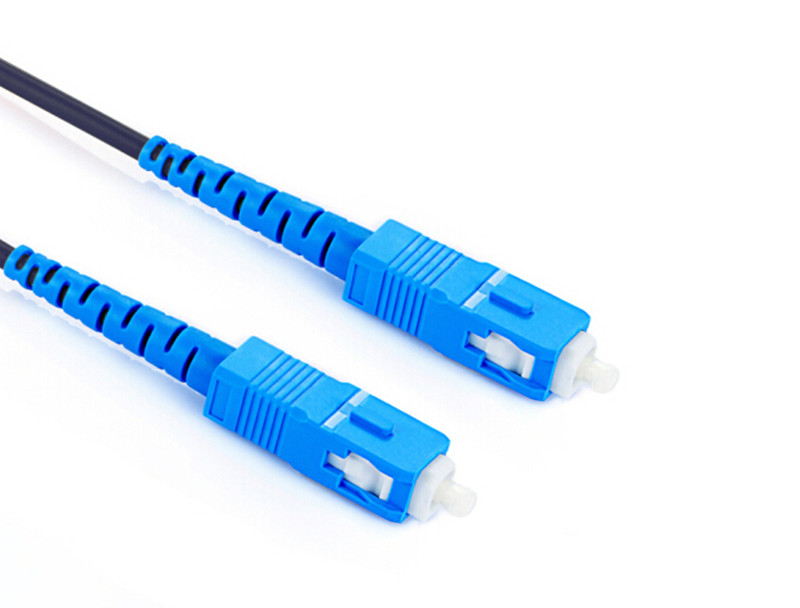

FTTH Patchcord


Product Name : FTTH Patchcord

Product Code : SNT-FTTHPC-1C-SC

Feature

Suitable for telecommuniction networks

Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,,DIN

High durability and reliability

Low insertion loss and high return loss

Single mode/multi mode, PC/UPC/APC patch cord and pigtail available

Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available

Specification

Insertion loss: ≤ 0.3dB

Return loss:≥55dB

Durability; ≥1000 times

Operating temperature; -40~+80°


Parameter
ModeSingle modeMultimode
PolishUPCAPCPC
Insertion Loss≤0.2dB≤0.2dB≤0.2dB
Return Loss≥50dB≥60dB≥35dB
Test Wavelength1310/1550nm850/1310nm
Durability(500 Matings)≤0.2dB
Operating Temperature-20℃~+70℃
Storage Temperature-40℃~+85℃
Fire ResistantIEC 60794-2-30
Standards-CompliantROHS,IEC and GR-326
Specification
Fiber typeSingle mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4
Fiber brandYOFC, Corning, OFS...
Connector typeSC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
Cord typeSimplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter0.9mm, 2.0mm, 3.0mm....
Cable jacketPVC, LSZH, OFNR, OFNP
Length(M)0.3m,1m,2m,5m,10m,25m,50m,100m
