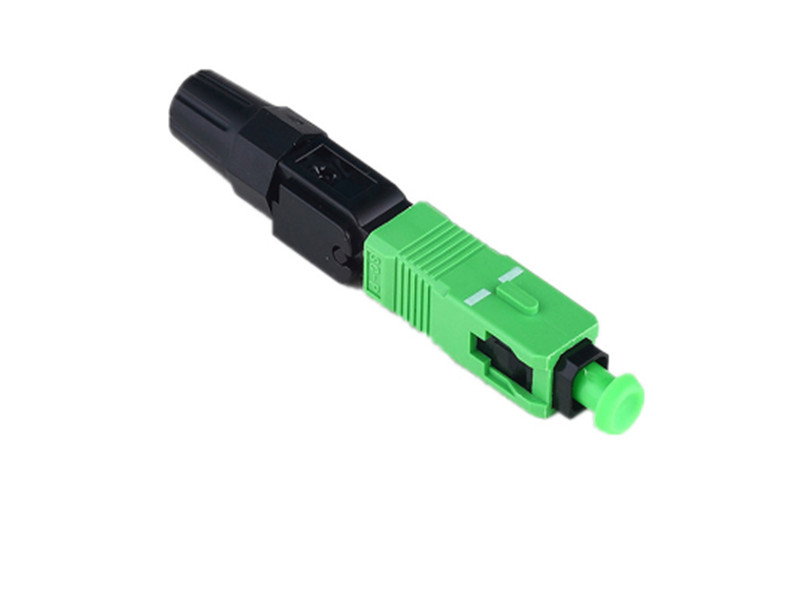

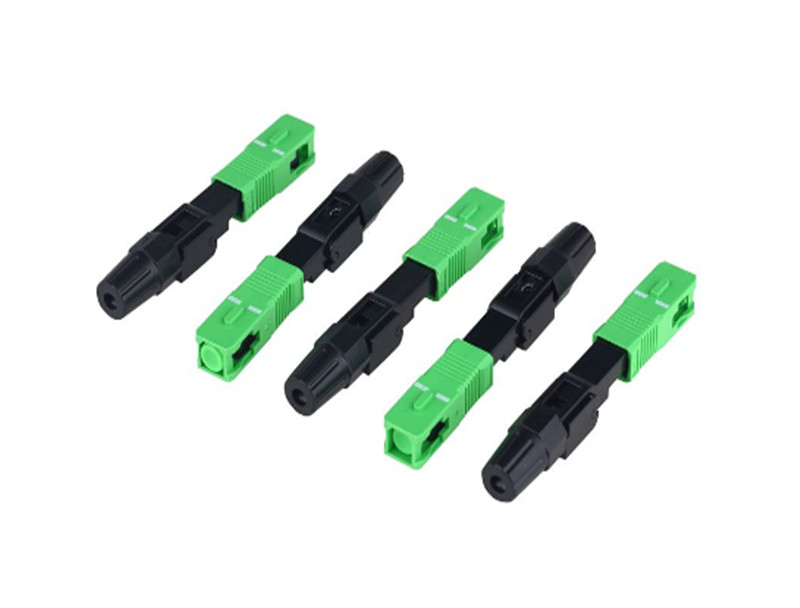

Fast Connector


Product Code : SNTFC-SCA-002

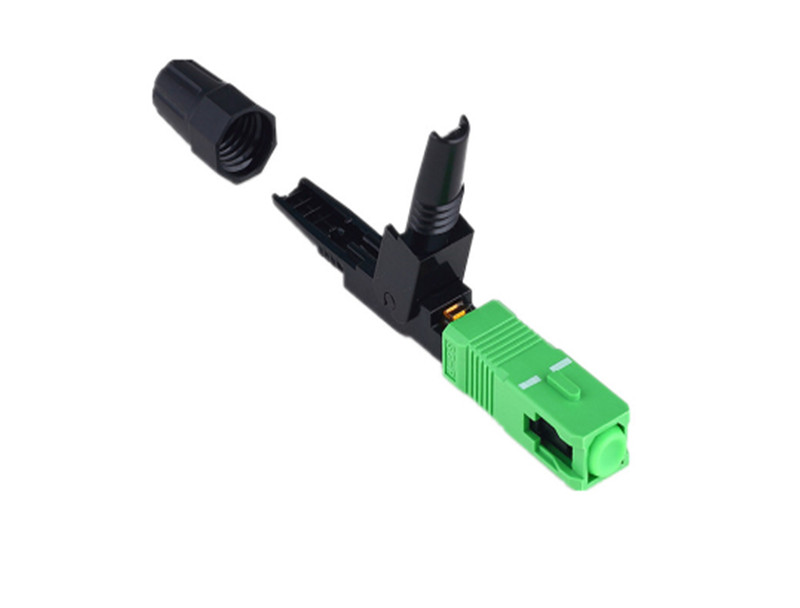

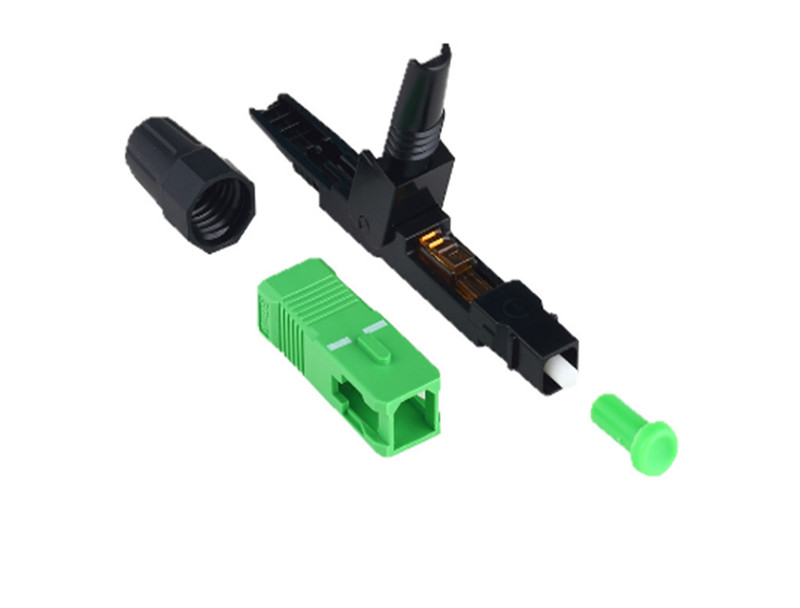

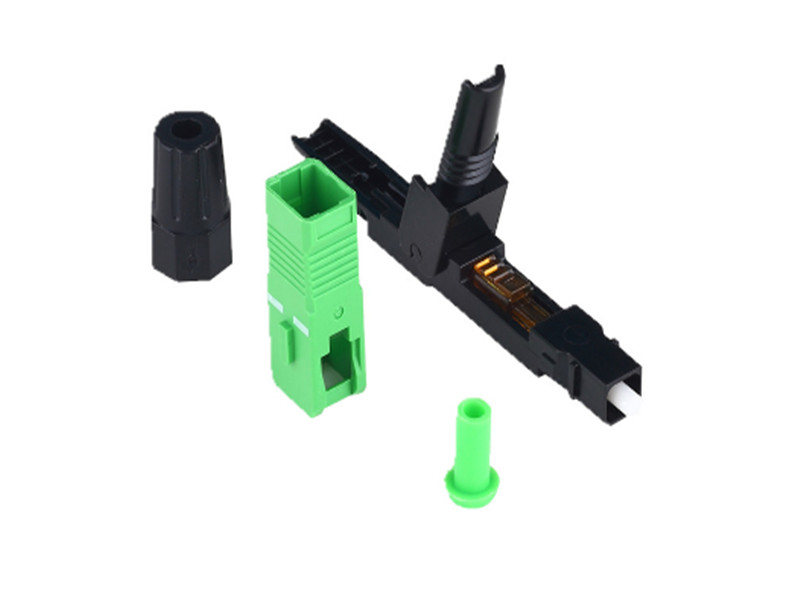

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



Features:
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE



Application

1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word


Specification:

ITEMTechnical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameterSM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation timeAbout 100s(no fiber cut)
Insert loss≤ 0.3dB(1310nm & 1550nm)
Return loss> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber>5 N
Fastening strength of naked fiber holder>10 N
Tensile strength>50 N
Using temperature-40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB  RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)IL ≤ 0.5dB  RL ≤ 5dB
