Home  >>  Product >> FBT Coupler >> Single Window
  • FBT Coupler

FBT Coupler

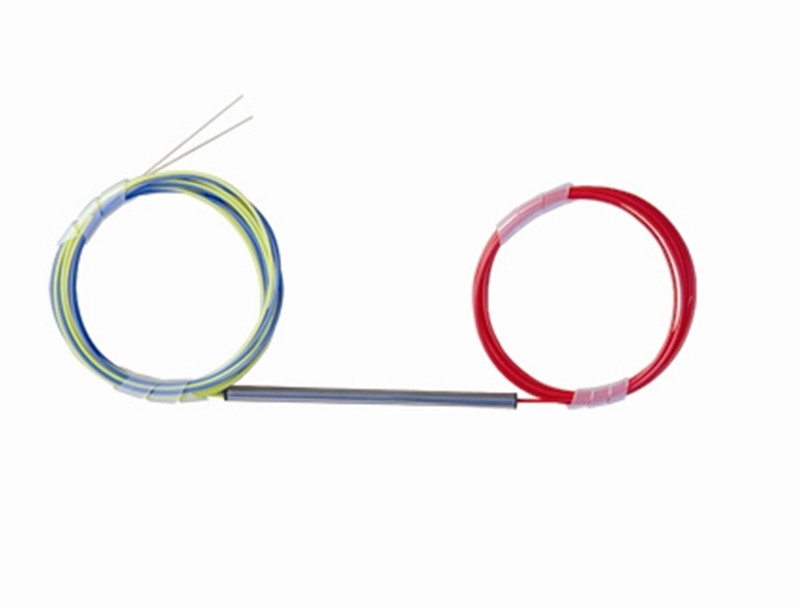

Product Name : FBT Coupler Singlewindow

Product Code : SNTFBT-1*2-SW-0.9MM-W/O

1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.Sunet provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
Sunet offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

Factory-installed fiber stub.
No epoxy and polishing required, No special tools needed when installed.

Low Excess loss
Environmentally stable
Good Thermal Stability

Long-haul Telecommunications
CATV Systems & Fiber Optic Sensors
Local Area Network
